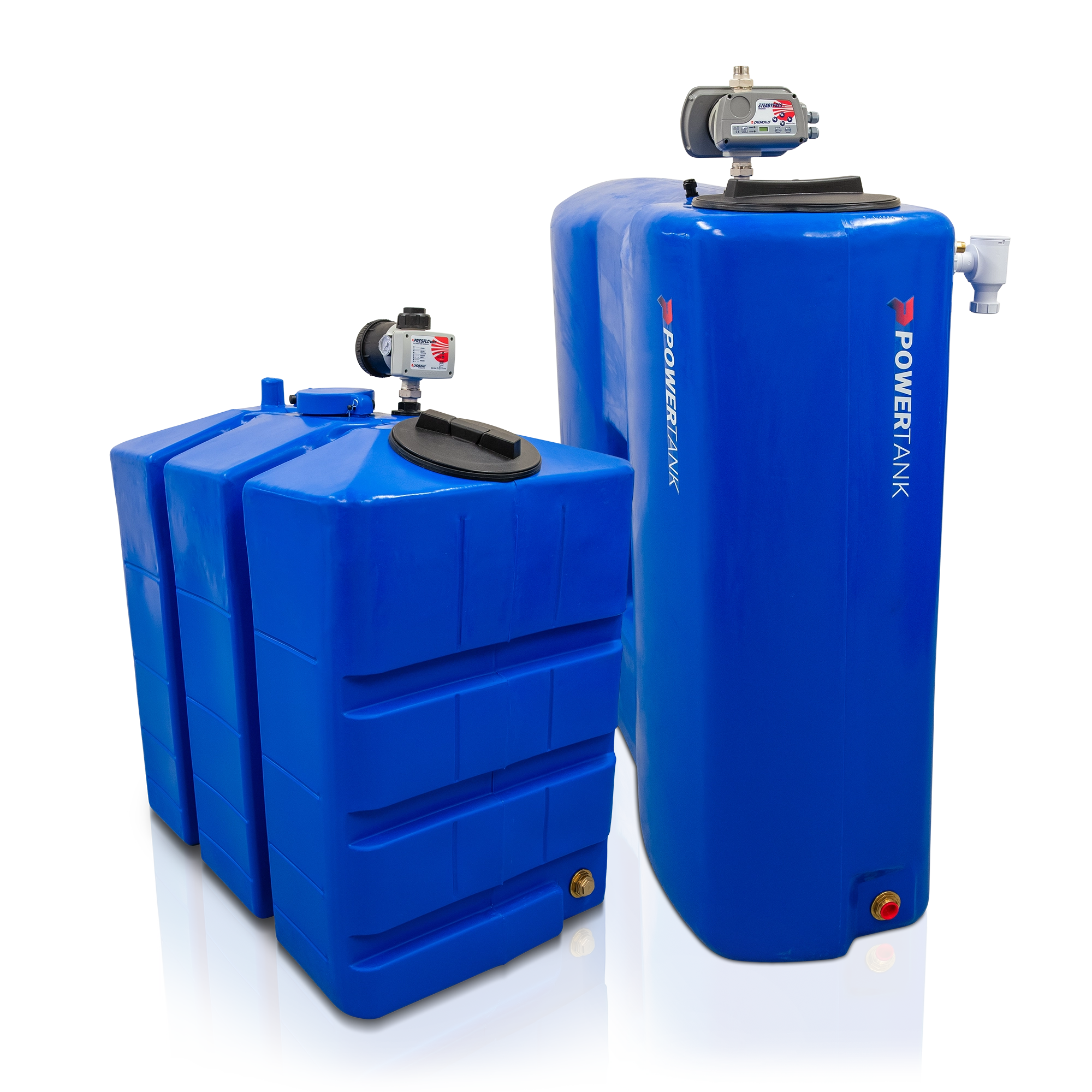

POWERTANK UTILITY
UTILITY 650 & 1000LTR
The Powertank Utility range is designed for domestic and light commercial use where there is low mains water pressure and where pressure fluctuates.
It is electronically controlled, starting and stopping the pump automatically when an outlet is opened and closed. The Utility range is designed for areas where the floor space is not restricted. This range caters for a wider variation of tank options to suit a wider range of applications.
RANGE OPTIONS

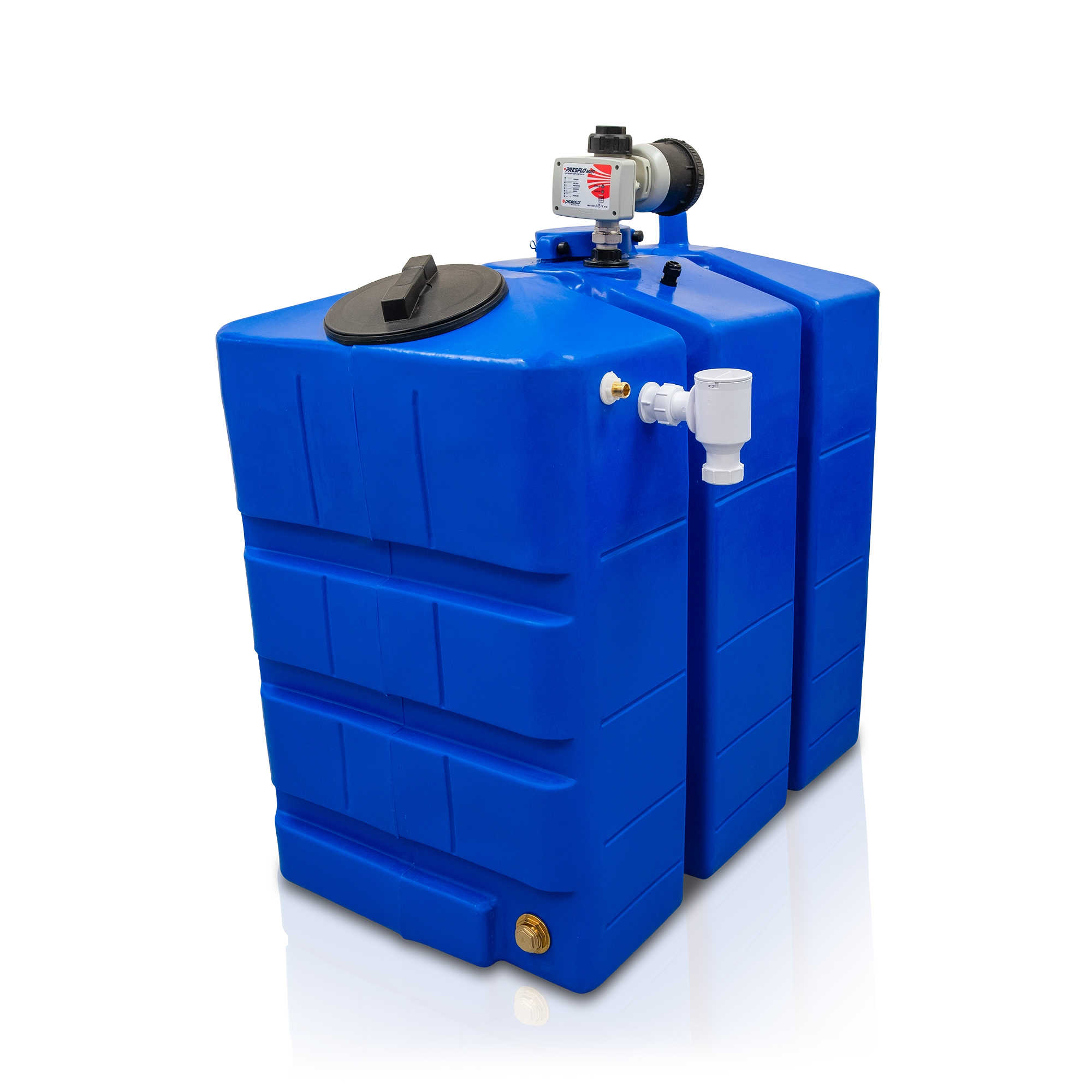

- 650ltr Utility Fixed Speed
- 650ltr Utility Variable Speed

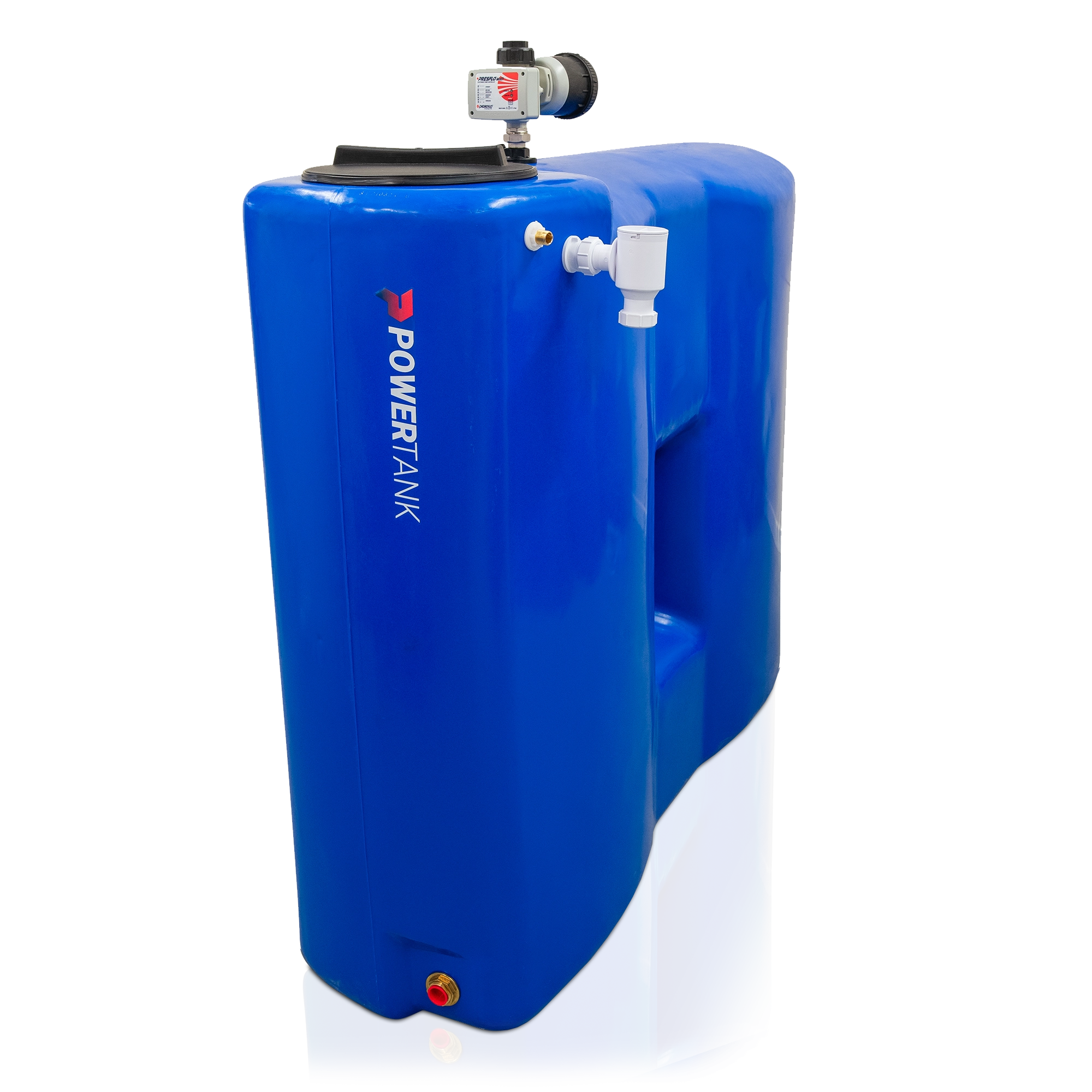

- 1000ltr Utility Fixed Speed

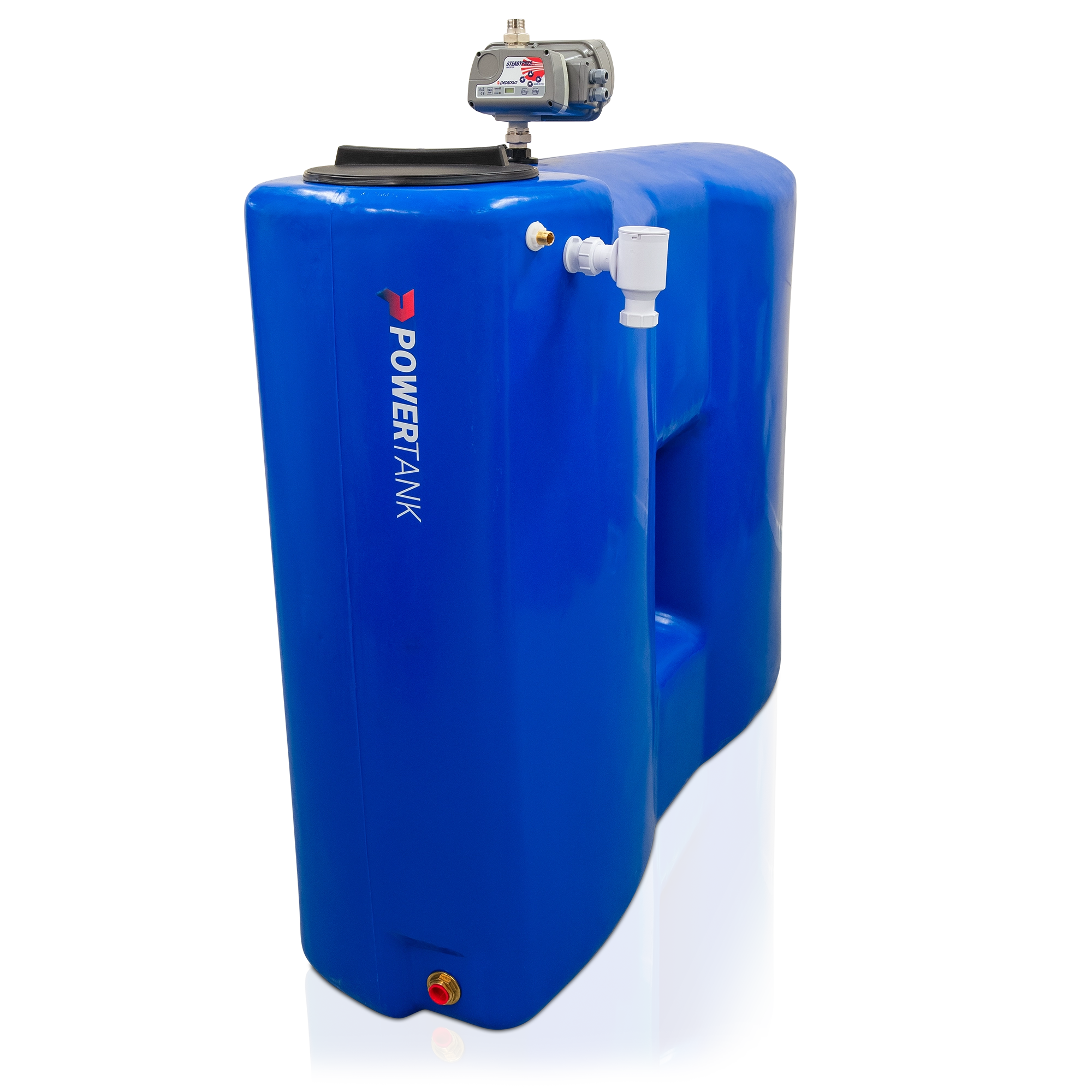

- 1000ltr Utility Variable Speed
- 1000ltr Utility Variable Speed Plus
- 1000ltr Utility Variable Speed Twin Pump
AB AIR GAP OPTION CAT5
OVERFLOW - INLET
TWIN PUMP OPTION
KEY FEATURES
- Non-corrosive holding tank (WRAS approved material)
- Pre-fitted WRAS approved fill valve
- Minimal installation required
- Adjustable digital display flow controller (Variable Speed Option)
- Dry run protection with auto restart (time delay)
- AF Air gap (AB Air gap optional)
- Suitable up to Fluid Category 4 (CAT 5 Optional)
TECHNICAL
- Power Supply: 250V 50Hz
- Mains Cable: 2mtr fitted with 13amp fuse mains plug
- Access Cover: 285mm Ø
- Tank Weight Full: 1ltr=1kg plus weight of empty tank
- Inlet: ½” BSP (3/4” Optional)
- Outlet: 1” BSP
- Overflow: 1 ¼” (40mm) female waste - pipe compression fitting
- Drain Off: 1” BSP
DIMENSIONS
650ltr Utility Fixed Speed L: 1083mm W:669mm H:1283mm Weight: 54kg
650ltr Utility Variable Speed L:1083mm W:669mm H:1283mm Weight: 60kg
1000ltr Utility Fixed Speed L: 1688mm W:563mm H:1640mm Weight: 74kg
1000ltr Utility Variable Speed L: 1688mm W:563mm H:1640mm Weight: 80kg
1000ltr Utility Variable Speed Plus L: 1688mm W:563mm H:1640mm Weight: 82kg
1000ltr Utility Variable Speed Twin L: 1688mm W:563mm H:1640mm Weight: 87kg
| Pump Option | kW | HP | A | Pressure | 1 Bar | 2 Bar | 3 Bar | 4 Bar | 5 Bar | 6 Bar |
|---|---|---|---|---|---|---|---|---|---|---|
| Fixed Speed | 0.55 | 0.75 | 3.4 | 73 | 57 | 40 | 10 | - | - | |
| Variable Speed | 0.75 | 1 | 6.3 | 80 | 80 | 80 | 68 | 50 | 14 | |
| Variable Speed Plus | 1.5 | 2 | 8.7 | Q l/min | 160 | 160 | 138 | 107 | 50 | - |
| Variable Speed Twin | 1.5 | 2 | 12.6 | 160 | 160 | 160 | 136 | 100 | 28 |
| Pump Option | Power | Performance |
|---|---|---|
| Fixed Speed | 0.55kW 0.75HP 3.4A | 57lpm @ 2 Bar | 40lpm @ 3 Bar | 10lpm @ 4 Bar |
| Variable Speed | 0.75kW 1HP 6.3A | 80pm @ 2 Bar | 80lpm @ 3 Bar | 80lpm @ 4 Bar |
| Variable Speed Plus | 1.5kW 2HP 8.7A | 160lpm @ 2 Bar | 138lpm @ 3 Bar | 107lpm @ 4 Bar |
| Variable Speed Twin | 1.5kW 2HP 12.6A | 160lpm @ 2 Bar | 160lpm @ 3 Bar | 136lpm @ 4 Bar |
Please note that we have a policy of continuous product development and specifications may change from those shown.
