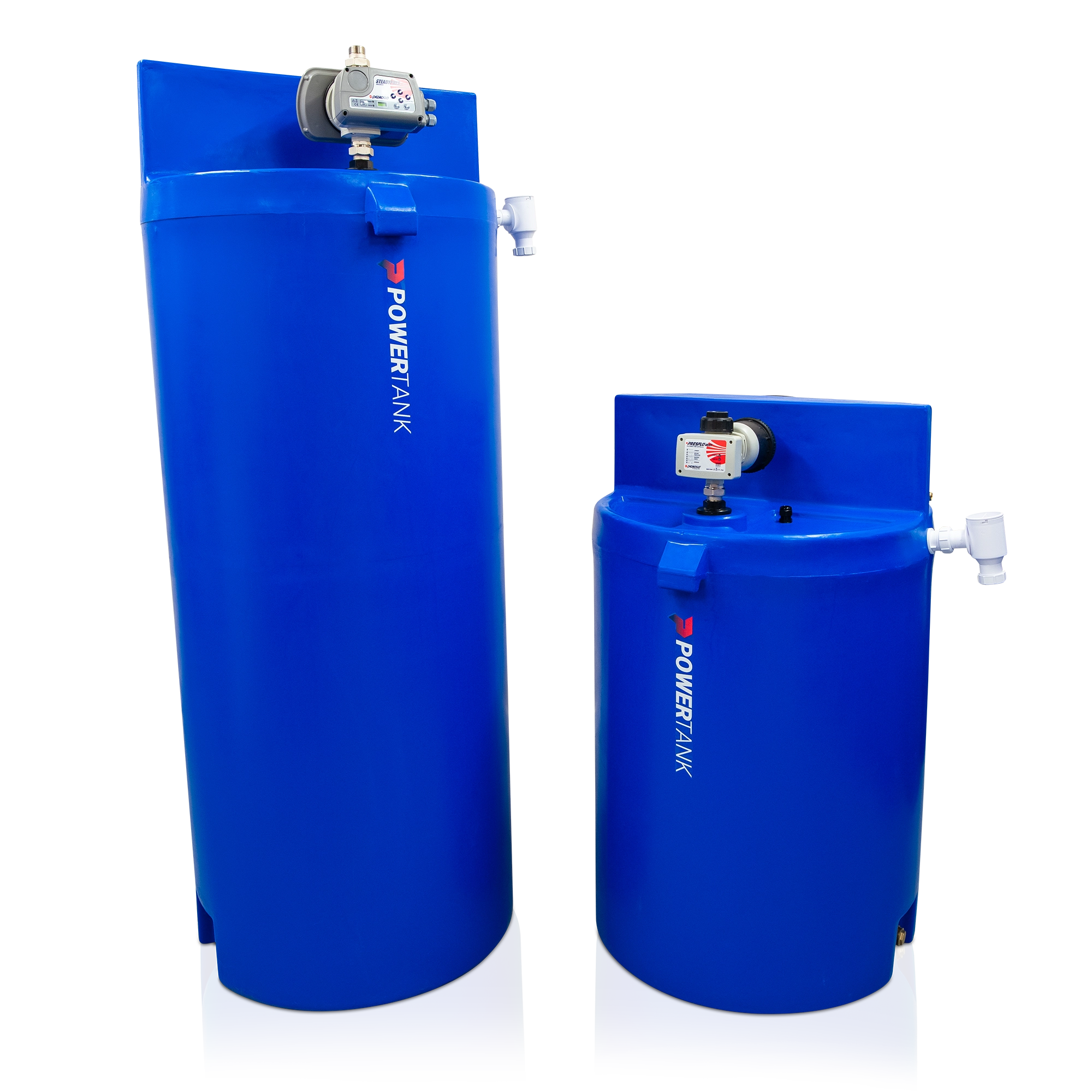

POWERTANK UTILITY
UTILITY 500 & 750LTR
The Powertank Utility range is designed for domestic and light commercial use where there is low mains water pressure and where pressure fluctuates.
It is electronically controlled, starting and stopping the pump automatically when an outlet is opened and closed. The Utility range is designed for areas where the floor space is not restricted. This range caters for a wider variation of tank options to suit a wider range of applications.
RANGE OPTIONS
- 500ltr Utility Fixed Speed
- 500ltr Utility Variable Speed
- 500ltr Utility Variable Speed Plus
- 500ltr Utility Variable Speed Twin Pump
- 750ltr Utility Fixed Speed
- 750ltr Utility Variable Speed
- 750ltr Utility Variable Speed Plus
- 750ltr Utility Variable Speed Twin Pump
AB AIR GAP OPTION CAT5
OVERFLOW - INLET
TWIN PUMP OPTION
KEY FEATURES
- Non-corrosive holding tank (WRAS approved material)
- Pre-fitted WRAS approved fill valve
- Minimal installation required
- Adjustable digital display flow controller (Variable Speed Option)
- Dry run protection with auto restart (time delay)
- AF Air gap (AB Air gap optional)
- Suitable up to Fluid Category 4 (CAT 5 Optional)
TECHNICAL
- Power Supply: 250V 50Hz
- Mains Cable: 2mtr fitted with 13amp fuse mains plug
- Access Cover: 285mm Ø
- Tank Weight Full: 1ltr=1kg plus weight of empty tank
- Inlet: ½” BSP (3/4” Optional)
- Outlet: 1” BSP
- Overflow: 1 ¼” (40mm) female waste - pipe compression fitting
- Drain Off: 1” BSP
DIMENSIONS

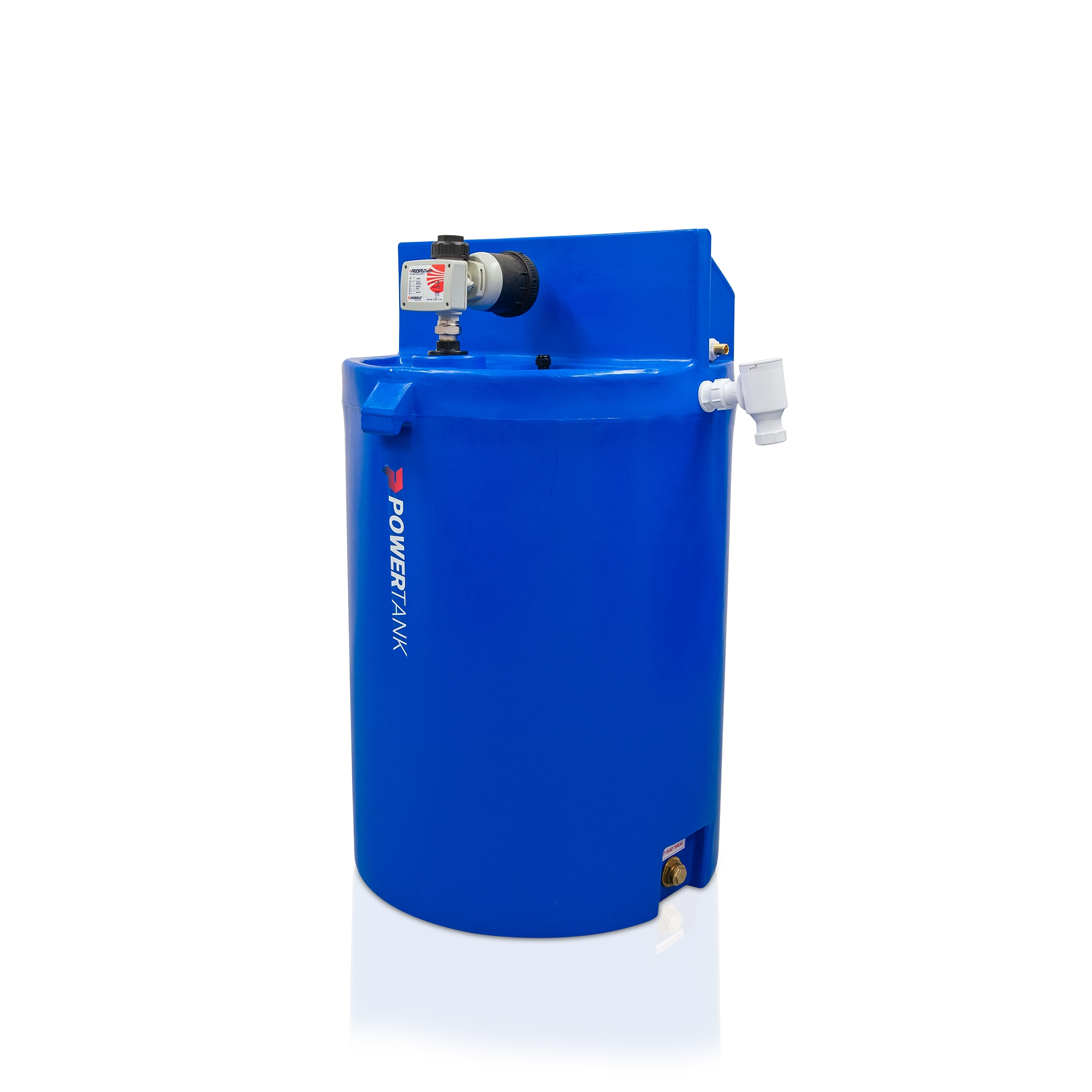

500ltr Utility Fixed Speed L: 760mm W:760mm H:1393mm Weight: 34kg

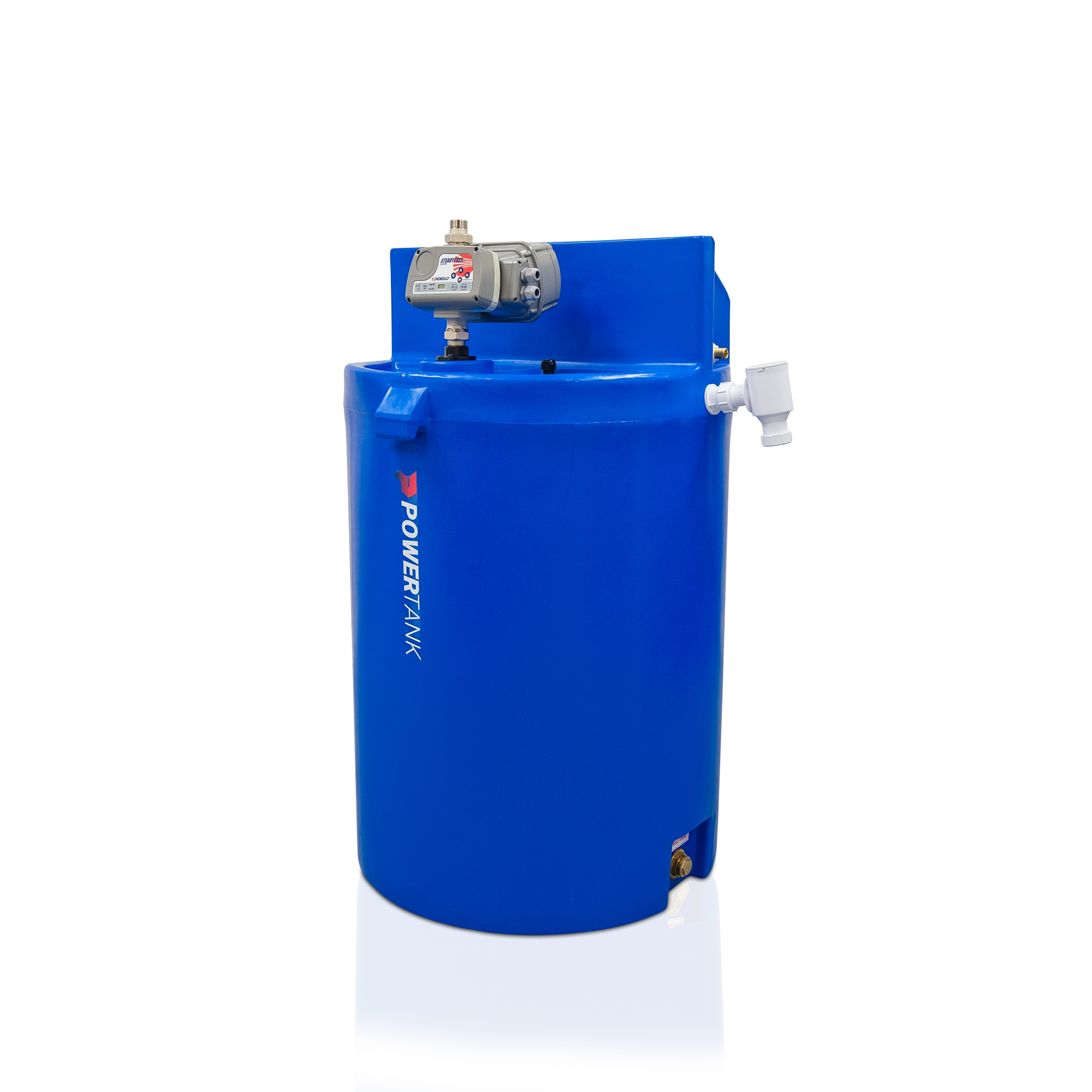

500ltr Utility Variable Speed L: 760mm W:760mm H:1393mm Weight: 40kg
500ltr Utility Variable Speed Plus L: 760mm W:760mm H:1393mm Weight: 42kg
500ltr Utility Variable Speed Twin Pump L: 760mm W:760mm H:1393mm Weight: 45kg

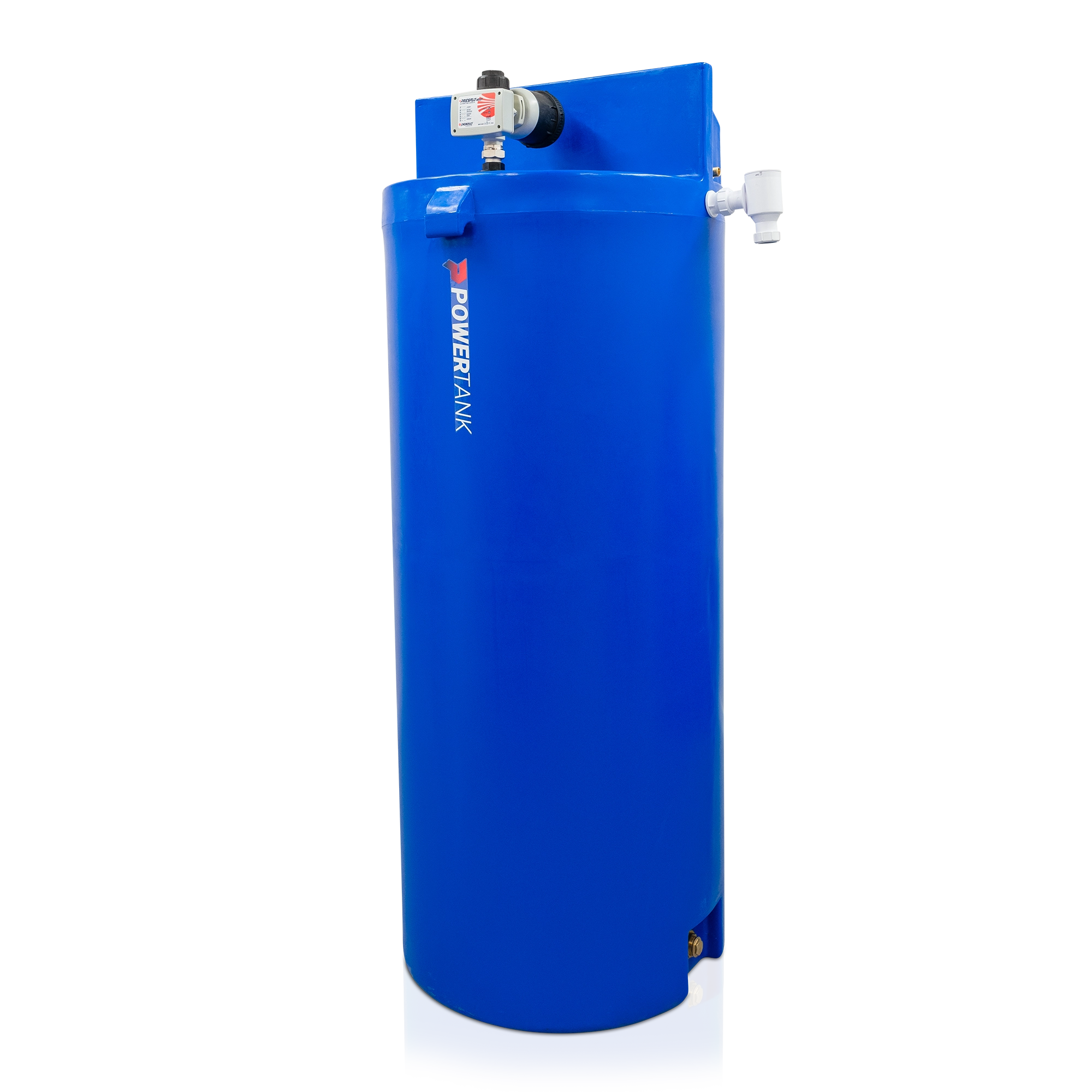

750ltr Utility Fixed Speed L: 760mm W:760mm H:2113mm Weight: 49kg

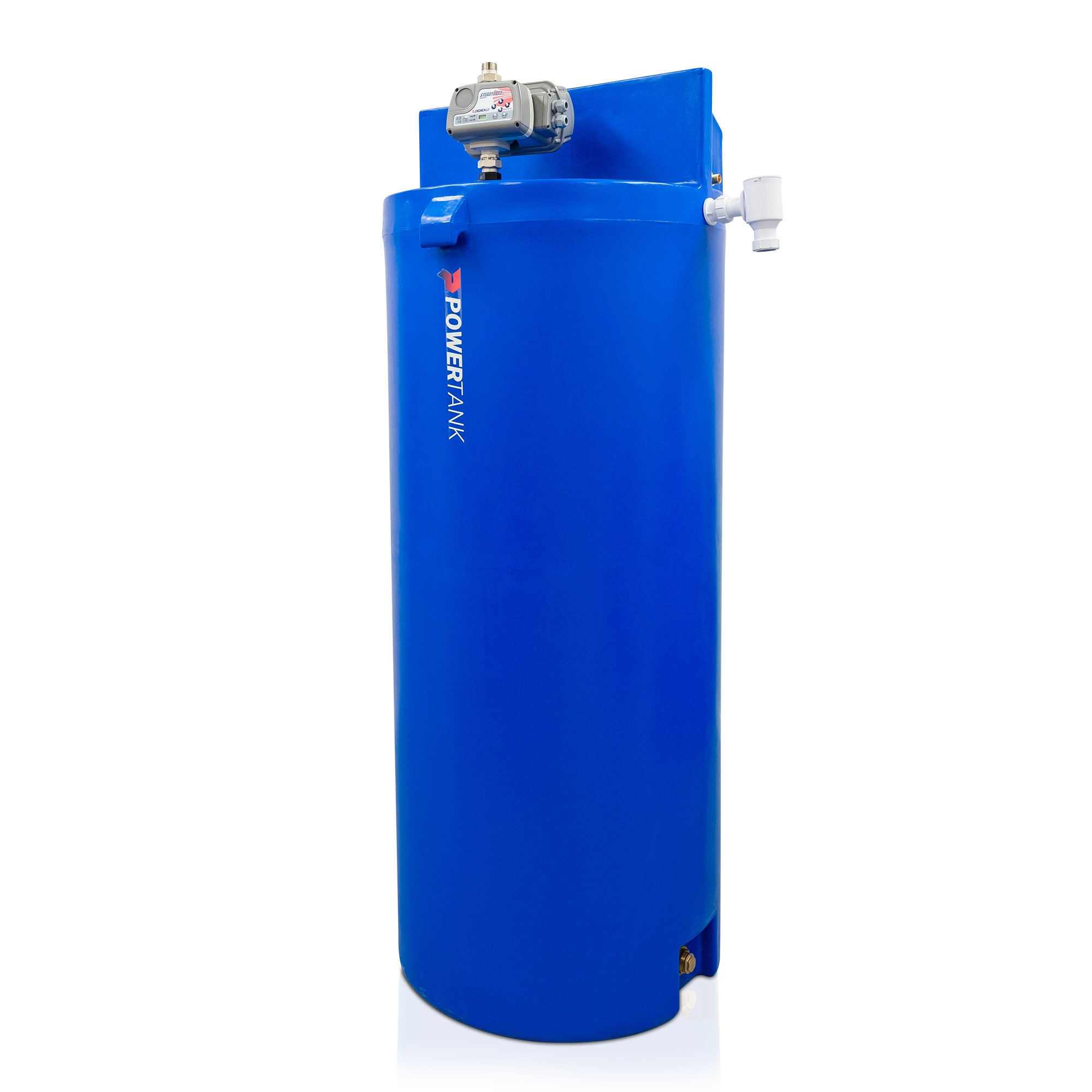

750ltr Utility Variable Speed L: 760mm W:760mm H:2113mm Weight: 55kg
750ltr Utility Variable Speed Plus L: 760mm W:760mm H:2113mm Weight: 57kg
750ltr Utility Variable Speed Twin Pump L: 760mm W:760mm H:2113mm Weight: 60kg
| Pump Option | kW | HP | A | Pressure | 1 Bar | 2 Bar | 3 Bar | 4 Bar | 5 Bar | 6 Bar |
|---|---|---|---|---|---|---|---|---|---|---|
| Fixed Speed | 0.55 | 0.75 | 3.4 | 73 | 57 | 40 | 10 | - | - | |
| Variable Speed | 0.75 | 1 | 6.3 | 80 | 80 | 80 | 68 | 50 | 14 | |
| Variable Speed Plus | 1.5 | 2 | 8.7 | Q l/min | 160 | 160 | 138 | 107 | 50 | - |
| Variable Speed Twin | 1.5 | 2 | 12.6 | 160 | 160 | 160 | 136 | 100 | 28 |
| Pump Option | Power | Performance |
|---|---|---|
| Fixed Speed | 0.55kW 0.75HP 3.4A | 57lpm @ 2 Bar | 40lpm @ 3 Bar | 10lpm @ 4 Bar |
| Variable Speed | 0.75kW 1HP 6.3A | 80pm @ 2 Bar | 80lpm @ 3 Bar | 80lpm @ 4 Bar |
| Variable Speed Plus | 1.5kW 2HP 8.7A | 160lpm @ 2 Bar | 138lpm @ 3 Bar | 107lpm @ 4 Bar |
| Variable Speed Twin | 1.5kW 2HP 12.6A | 160lpm @ 2 Bar | 160lpm @ 3 Bar | 136lpm @ 4 Bar |
Please note that we have a policy of continuous product development and specifications may change from those shown.
