POWERTANK RECTANGULAR
RECTANGULAR 300 & 500LTR
The Powertank Rectangular range is designed for domestic
and light commercial use where there is low mains water
pressure and where pressure fluctuates.
It is electronically controlled, starting and stopping the pump
automatically when an outlet is opened and closed. The 300ltr
& 500ltr tanks are designed for areas where the floor space is
not restricted but where height restrictions are an issue.

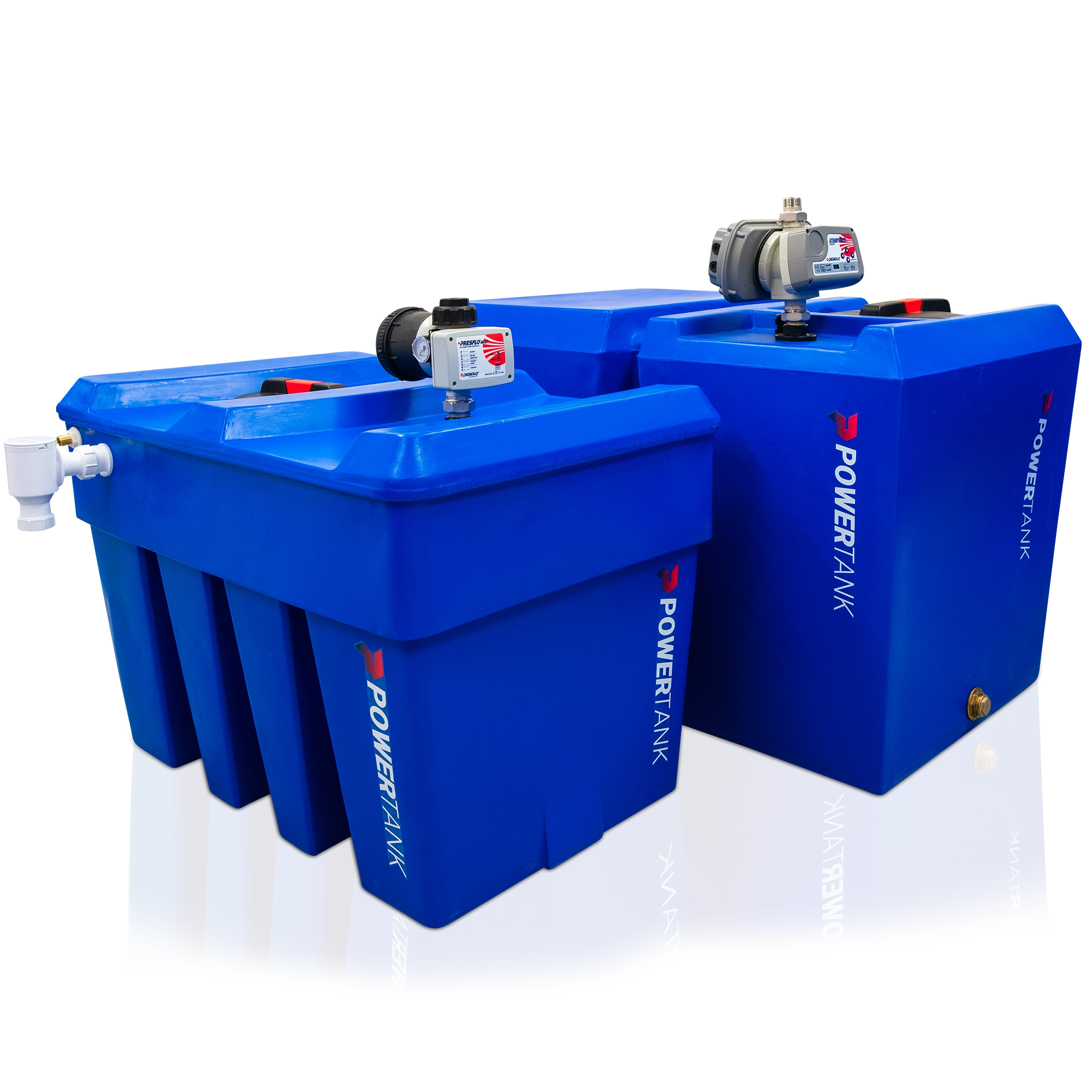

RANGE OPTIONS

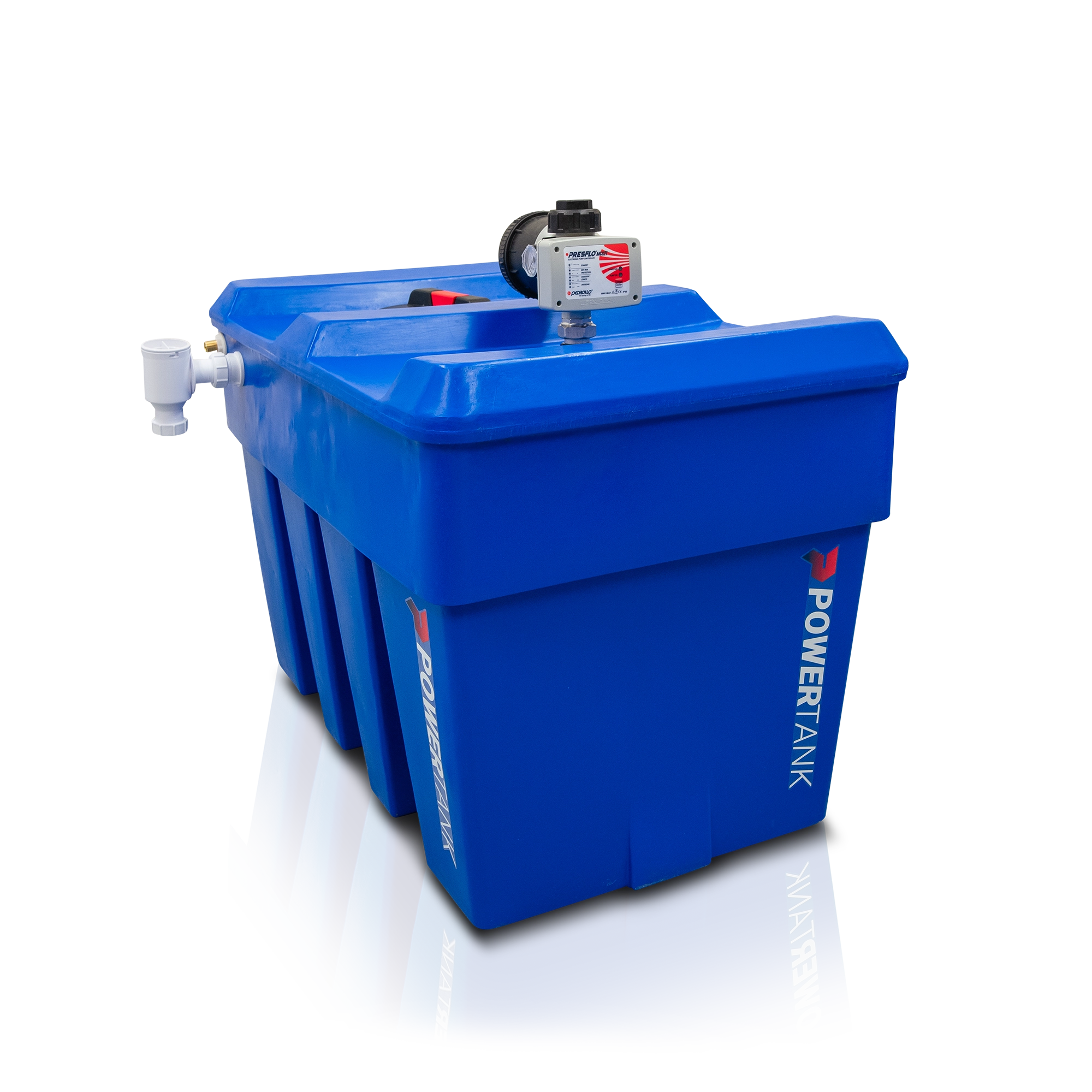

- 300ltr Rectangular Fixed Speed

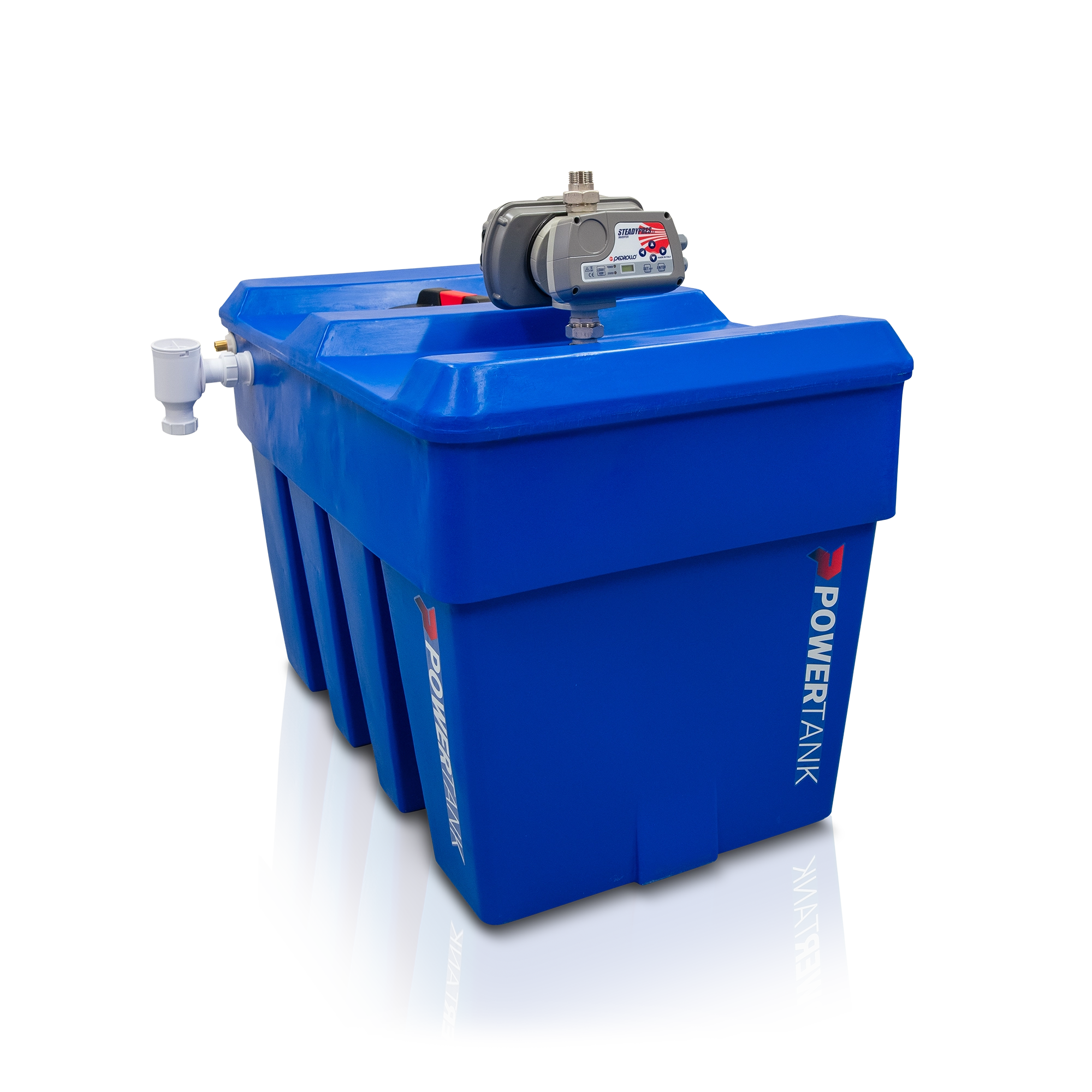

- 300ltr Rectangular Variable Speed

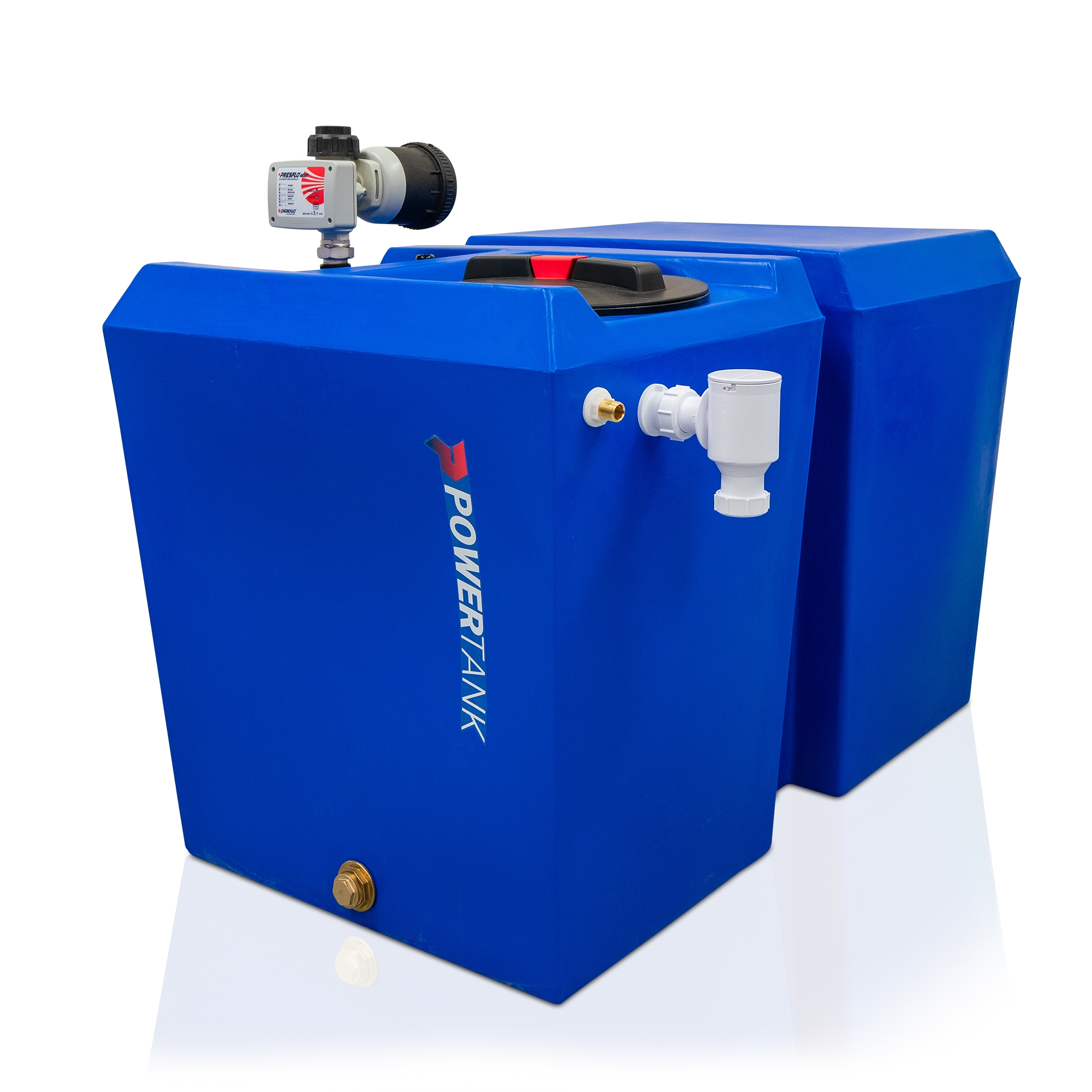

- 500ltr Rectangular Fixed Speed

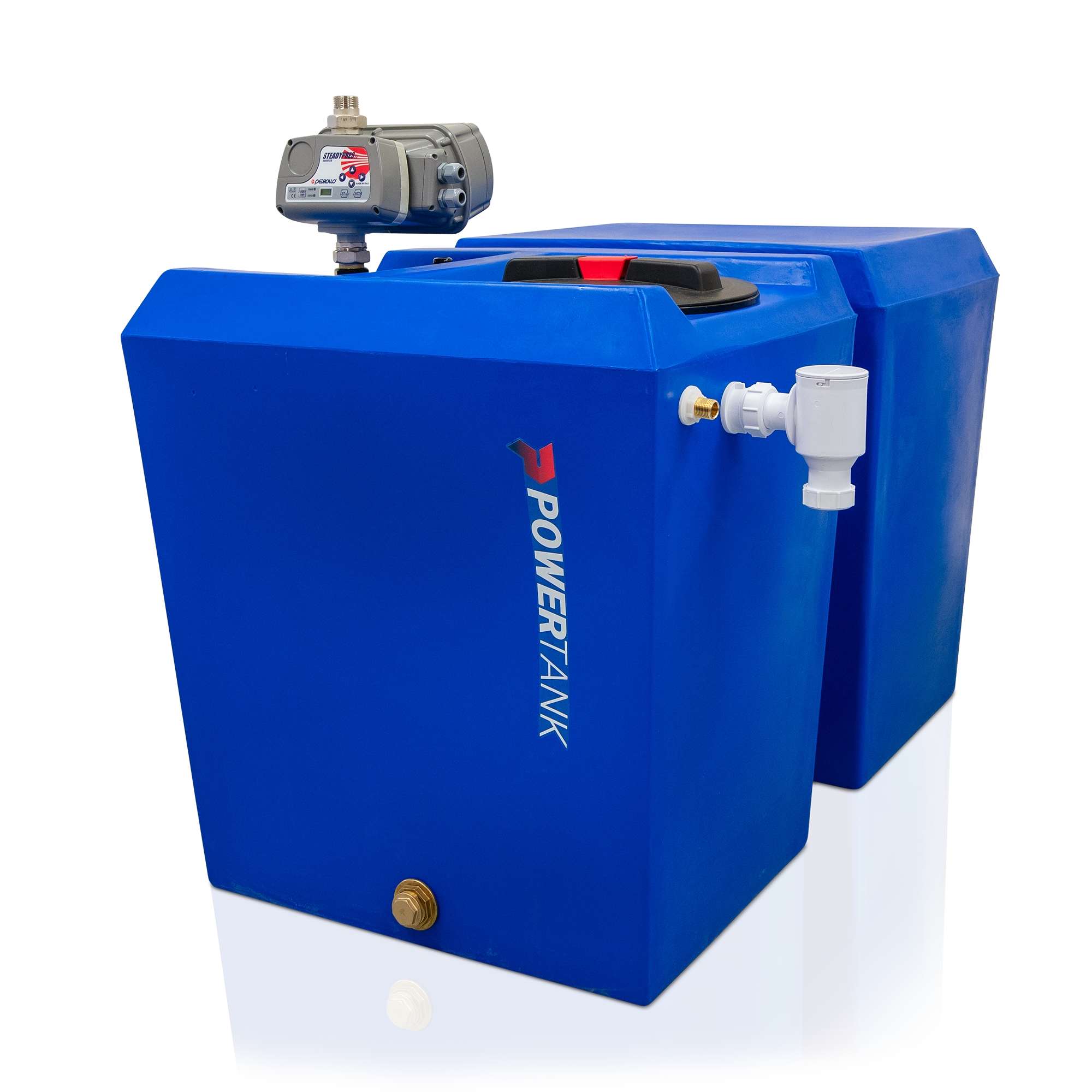

- 500ltr Rectangular Variable Speed
- 500ltr Rectangular Variable Speed Twin Pump

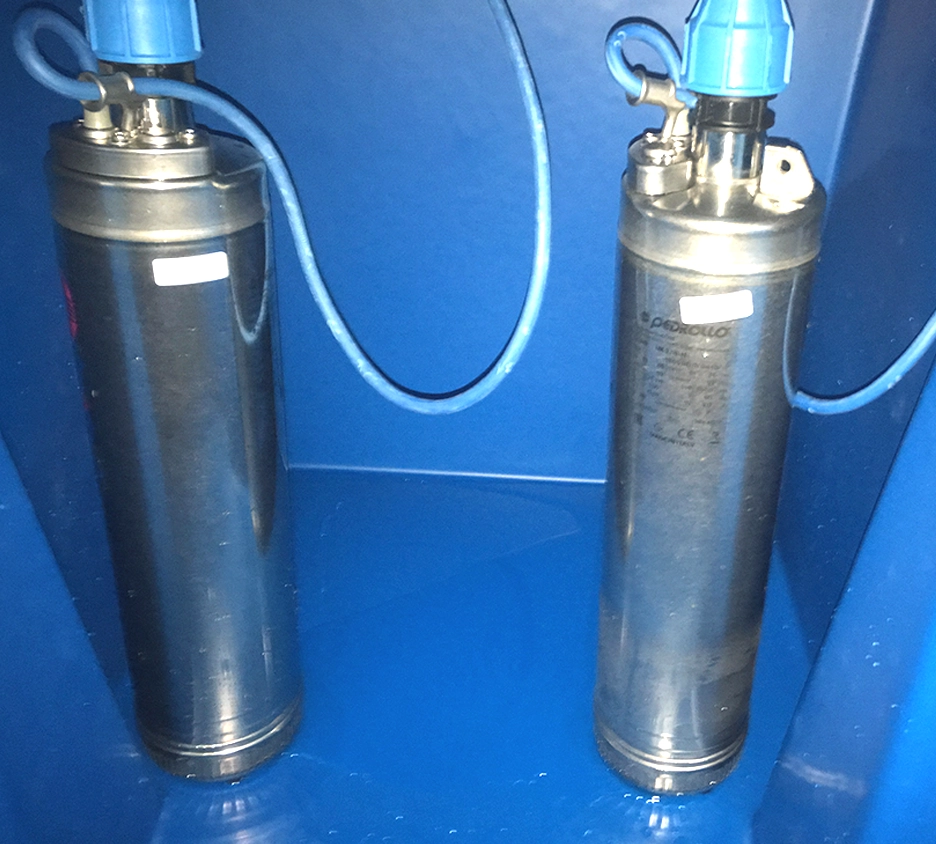

TWIN PUMP OPTION

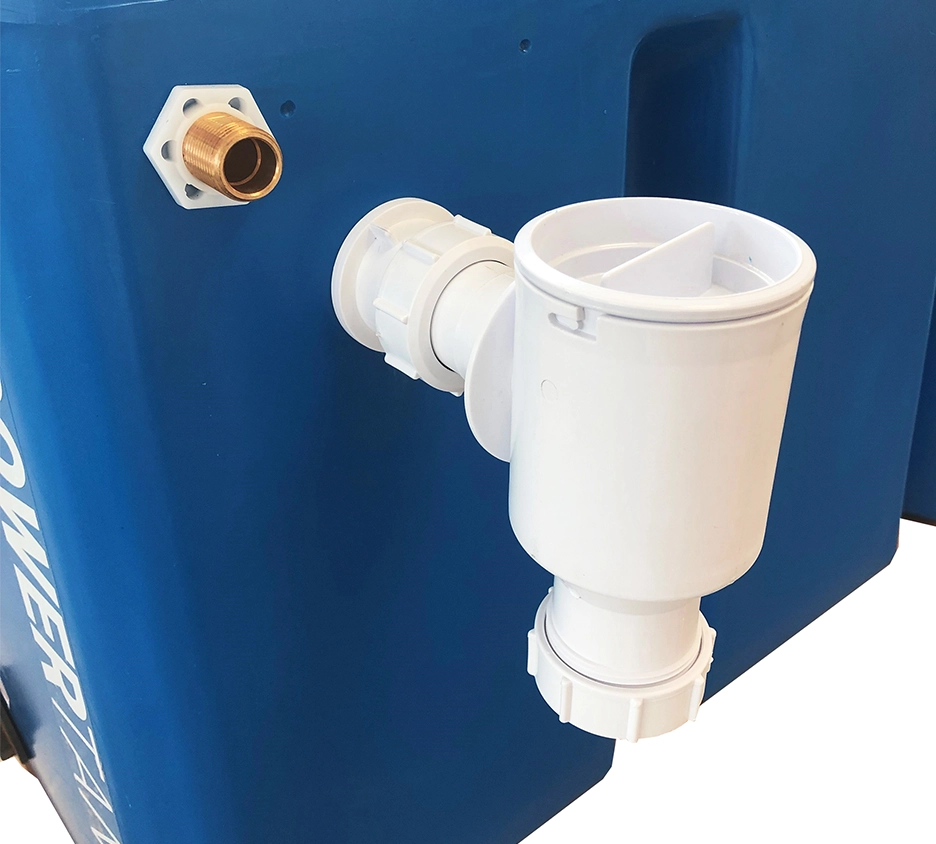

OVERFLOW - INLET

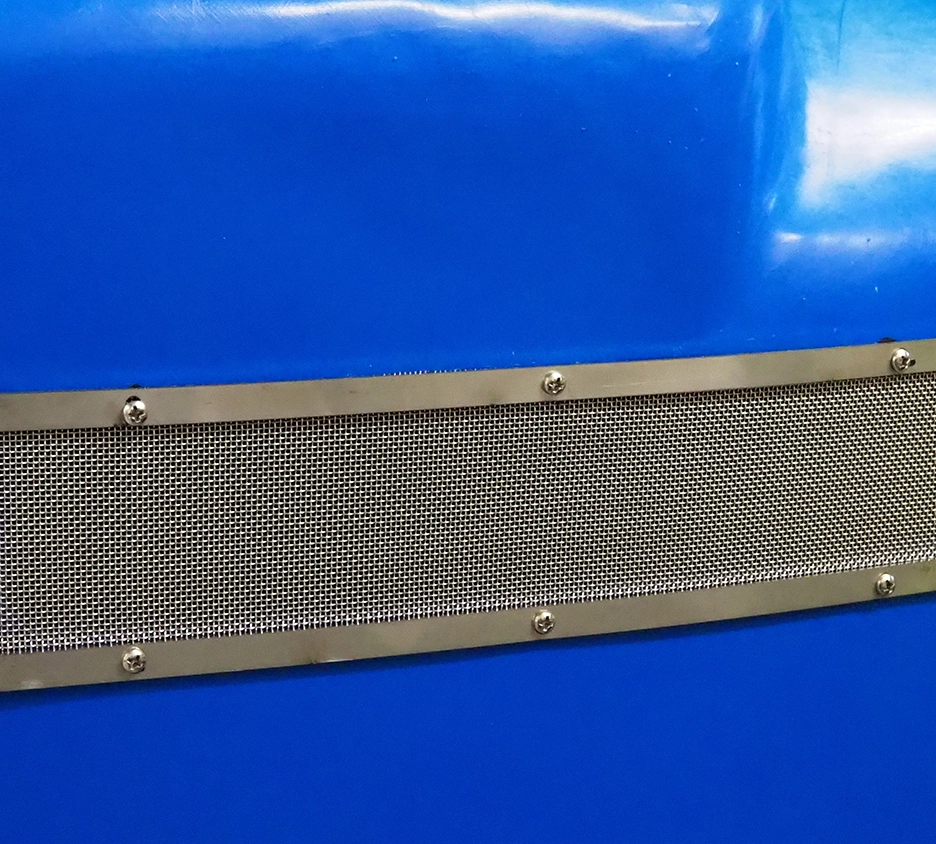

AB AIR GAP OPTION CAT5
KEY FEATURES
- Non-corrosive holding tank (WRAS approved material)
- Pre-fitted WRAS approved fill valve
- Minimal installation required
- Adjustable digital display flow controller (Variable Speed Option)
- Dry run protection with auto restart (time delay)
- AF Air gap (AB Air gap optional)
- Suitable up to Fluid Category 4 (CAT 5 Optional)
TECHNICAL
- Power Supply: 250V 50Hz
- Mains Cable: 2mtr fitted with 13amp fuse mains plug
- Access Cover: 300ltr = 190mm Ø | 500ltr=285mm Ø
- Tank Weight Full: 1ltr=1kg plus weight of empty tank
- Inlet: ½” BSP
- Outlet: 1” BSP
- Overflow: 1 ¼” (40mm) female waste - pipe compression fitting
- Drain Off: 1” BSP
DIMENSIONS
300ltr Rectangular Fixed Speed L: 1045mm W:655mm H:940mm Weight: 34kg
300ltr Rectangular Variable Speed L: 1045mm W:665mm H:940mm Weight: 39kg
500ltr Rectangular Fixed Speed L: 1190mm W:727mm H:1030mm Weight: 40kg
500ltr Rectangular Variable Speed L: 1190mm W:727mm H:1030mm Weight: 45kg
500ltr Rectangular Variable Speed Twin Pump L: 1190mm W:727mm H:1030mm Weight: 45kg
| Pump Option | kW | HP | A | Pressure | 1 Bar | 2 Bar | 3 Bar | 4 Bar | 5 Bar | 6 Bar |
|---|---|---|---|---|---|---|---|---|---|---|
| Fixed Speed | 0.55 | 0.75 | 3.4 | 73 | 57 | 40 | 10 | - | - | |
| Variable Speed | 0.75 | 1 | 6.3 | Q l/min | 80 | 80 | 80 | 68 | 50 | 14 |
| Variable Speed Twin | 1.5 | 2 | 12.6 | 160 | 160 | 160 | 136 | 100 | 28 |
| Pump Option | Power | Performance |
|---|---|---|
| Fixed Speed | 0.55kW 0.75HP 3.4A | 57lpm @ 2 Bar | 40lpm @ 3 Bar | 10lpm @ 4 Bar |
| Variable Speed | 0.75kW 1HP 6.3A | 80pm @ 2 Bar | 80lpm @ 3 Bar | 80lpm @ 4 Bar |
| Variable Speed Twin | 1.5kW 2HP 12.6A | 160lpm @ 2 Bar | 160lpm @ 3 Bar | 136lpm @ 4 Bar |
Please note that we have a policy of continuous product development and specifications may change from those shown.
