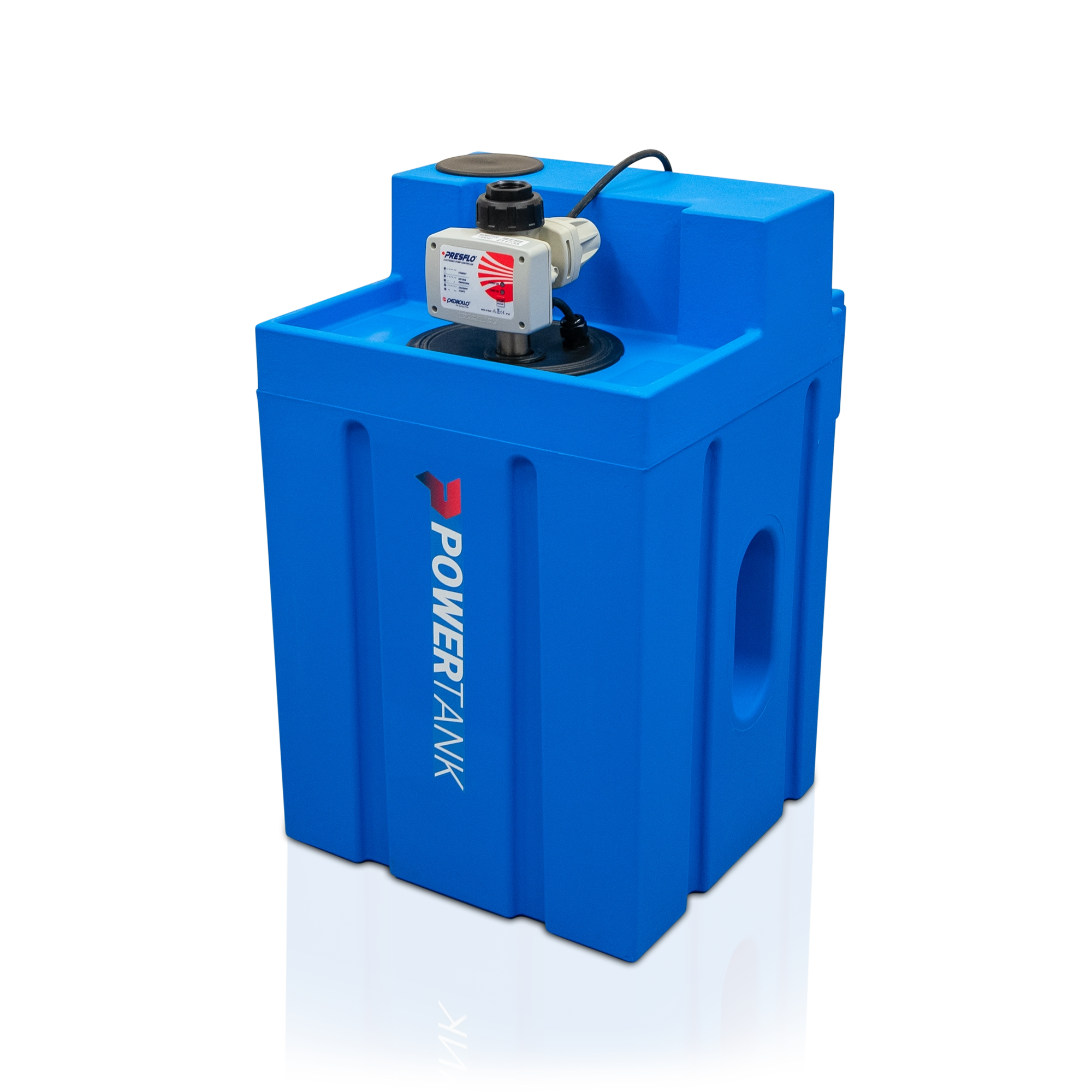

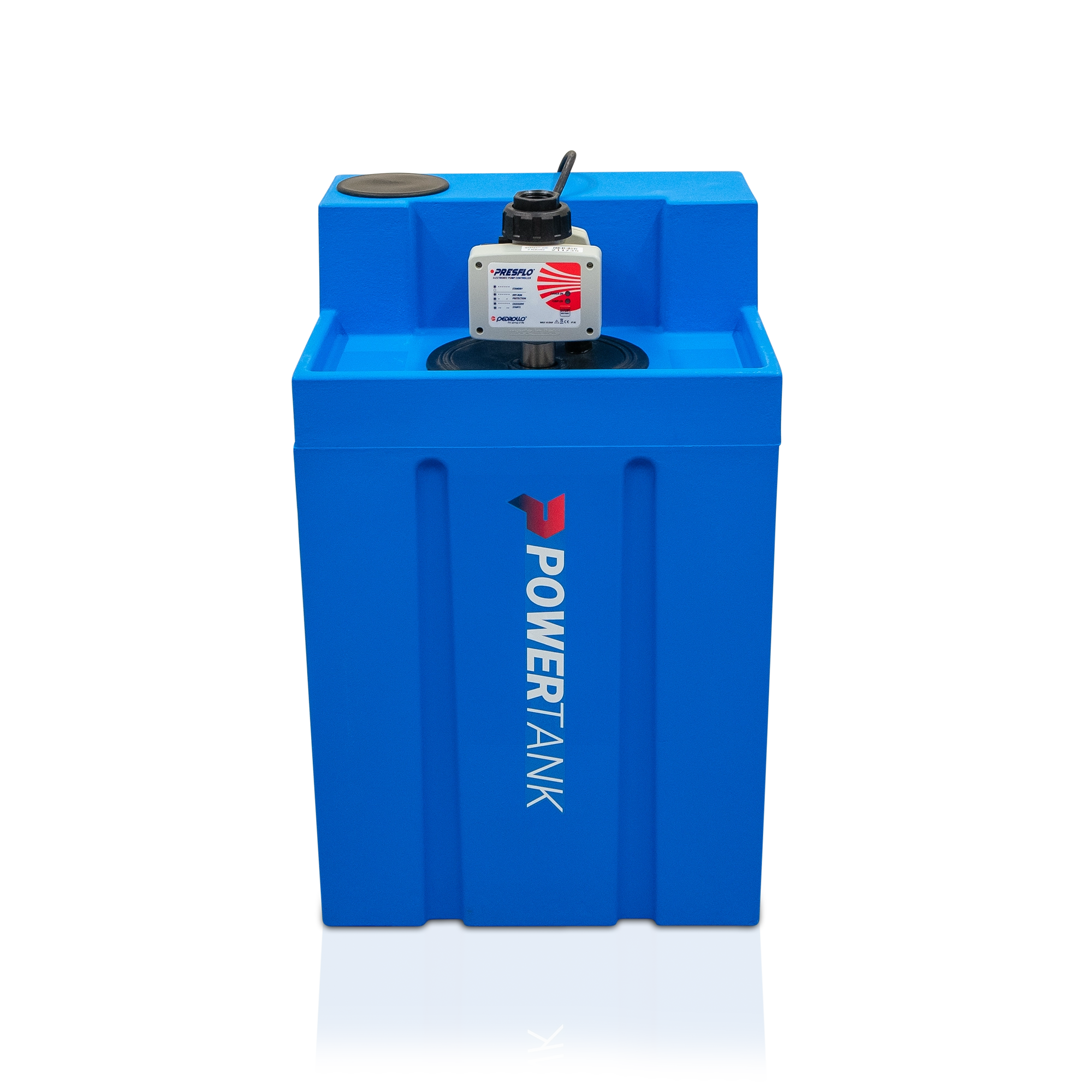

POWERTANK COMPACT
COMPACT 125LTR
The Powertank Compact has been specifically designed for smaller properties with low water pressure and flow and where space is at a premium i.e. apartments, cottages, townhouses.
Fitting into the space of a standard kitchen unit, the Powertank Compact is a similar size to a washing machine so can be hidden away behind a cupboard door.
The electronic controller automatically starts and stops the pump when a drop in pressure is sensed i.e. a tap is opened and closed.
RANGE OPTIONS
- 125ltr Compact Fixed Speed
- 125ltr Compact Variable Speed

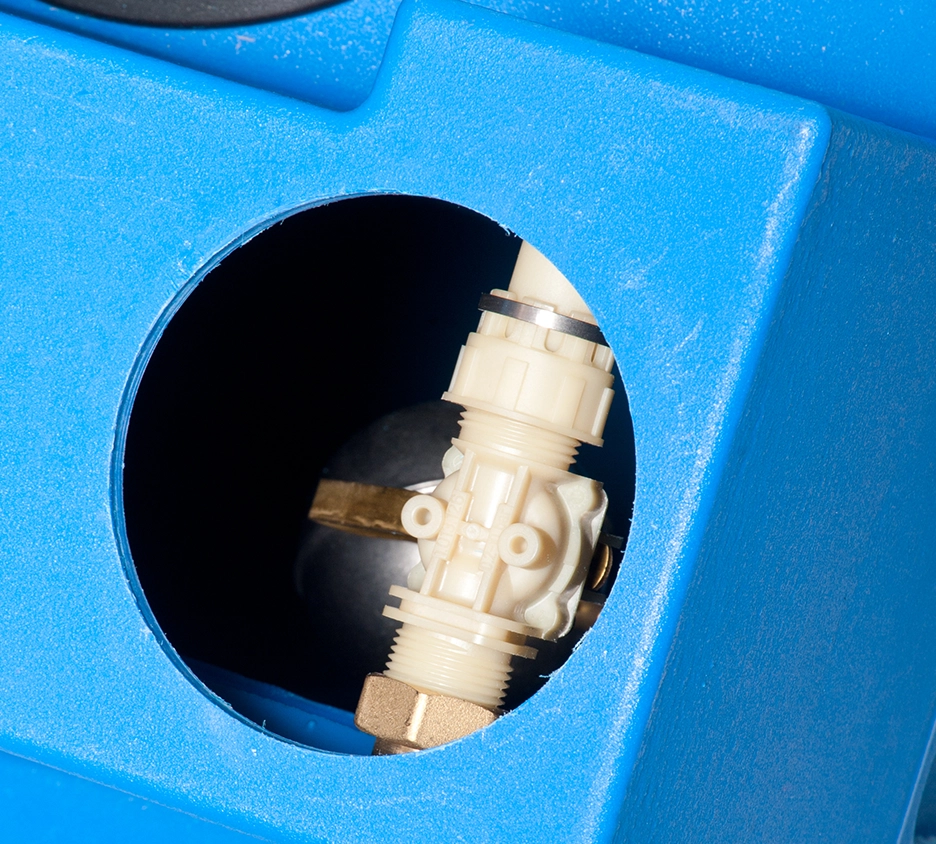

FILL VALVE

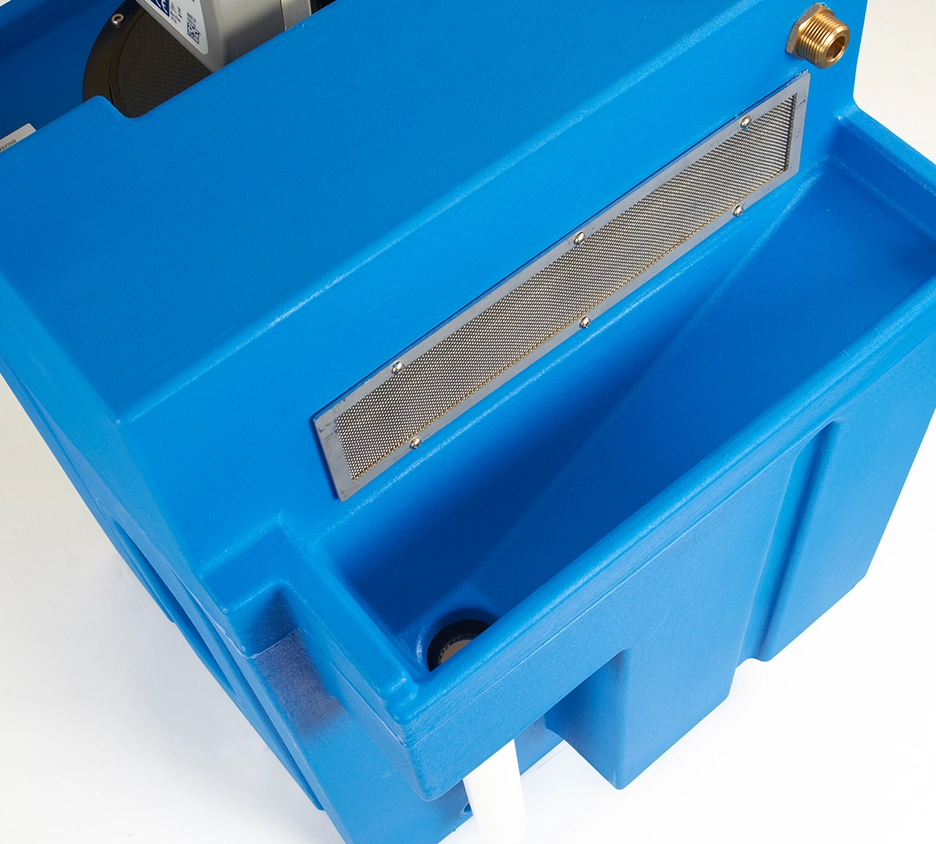

INTEGRAL OVERFLOW WEIR
VARIABLE SPEED OPTION
KEY FEATURES
- Non-corrosive holding tank (WRAS approved material)
- Pre-fitted WRAS approved fill valve
- Integral overflow weir
- Minimal installation required
- Adjustable digital display flow controller (Variable Speed Option)
- Dry run protection with auto restart (time delay)
- AB Air gap
- Suitable for up to Fluid Category 5
TECHNICAL
- Power Supply: 250V 50Hz
- Mains Cable: 2mtr fitted with 13amp fuse mains plug
- Access Cover: 168mm Ø
- Tank Weight Full: 1ltr=1kg plus weight of empty tank
- Inlet: ½” BSP
- Outlet: 1” BSP
- Overflow: 40mm Waste pipe
- Drain Off: 1” BSP
DIMENSIONS
125ltr Compact Fixed Speed L: 560mm W:490mm H:850mm Weight: 27kg
125ltr Compact Fixed Speed L: 560mm W:490mm H:850mm Weight: 33kg
| Pump Option | kW | HP | A | Pressure | 1 Bar | 2 Bar | 3 Bar | 4 Bar | 5 Bar | 6 Bar |
|---|---|---|---|---|---|---|---|---|---|---|
| Fixed Speed | 0.55 | 0.75 | 3.4 | Q l/min | 73 | 57 | 40 | 10 | - | - |
| Variable Speed Compact Only | 0.55 | 0.75 | 5.2 | Q l/min | 80 | 80 | 66 | 40 | - | - |
| Pump Option | Power | Performance |
|---|---|---|
| Fixed Speed | 0.55kW 0.75HP 3.4A | 57lpm @ 2 Bar | 40lpm @ 3 Bar | 10lpm @ 4 Bar |
| Variable Speed Compact Only | 0.55kW 0.75HP 5.2A | 80lpm @ 2 Bar | 66lpm @ 3 Bar | 40lpm @ 4 Bar |
Please note that we have a policy of continuous product development and specifications may change from those shown.
