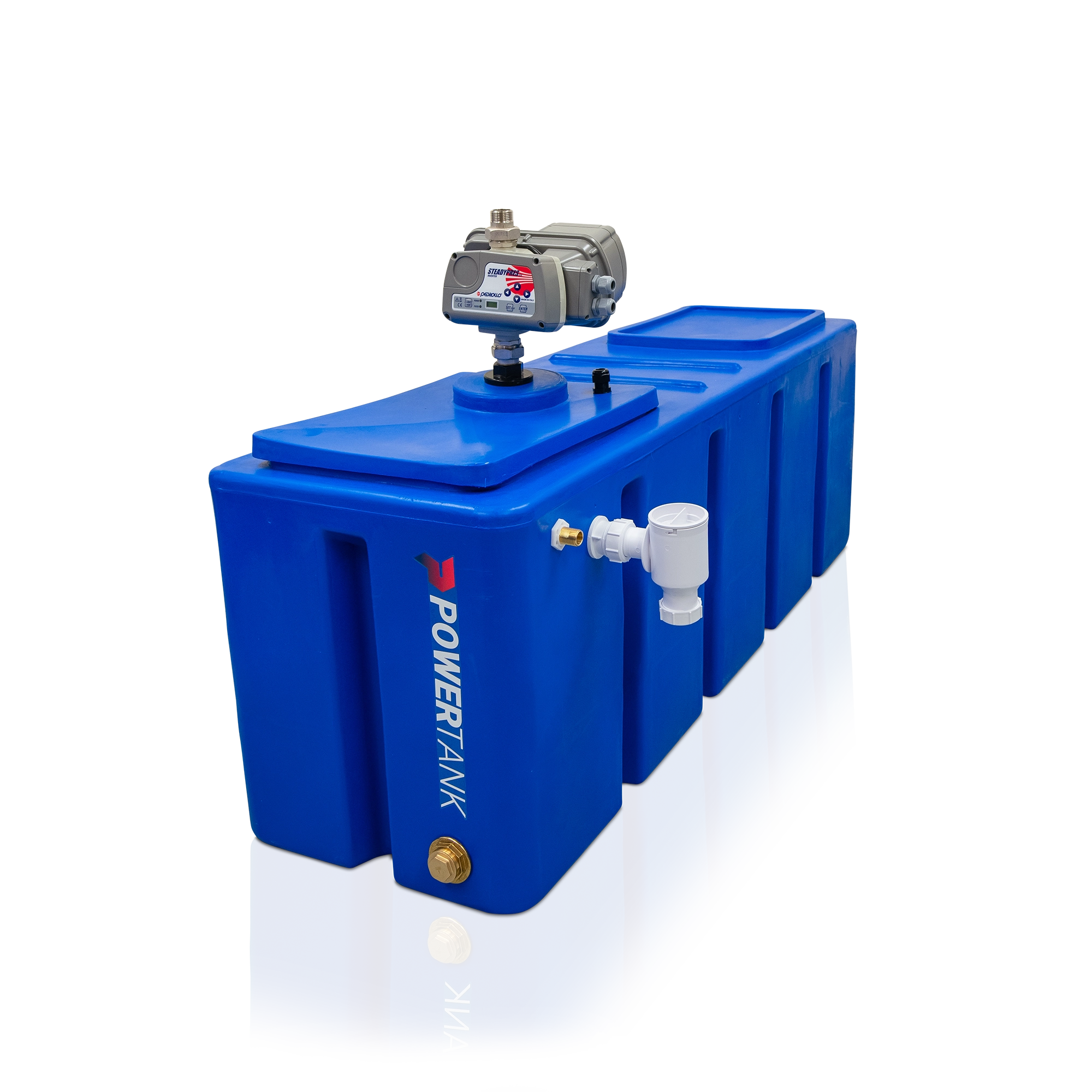

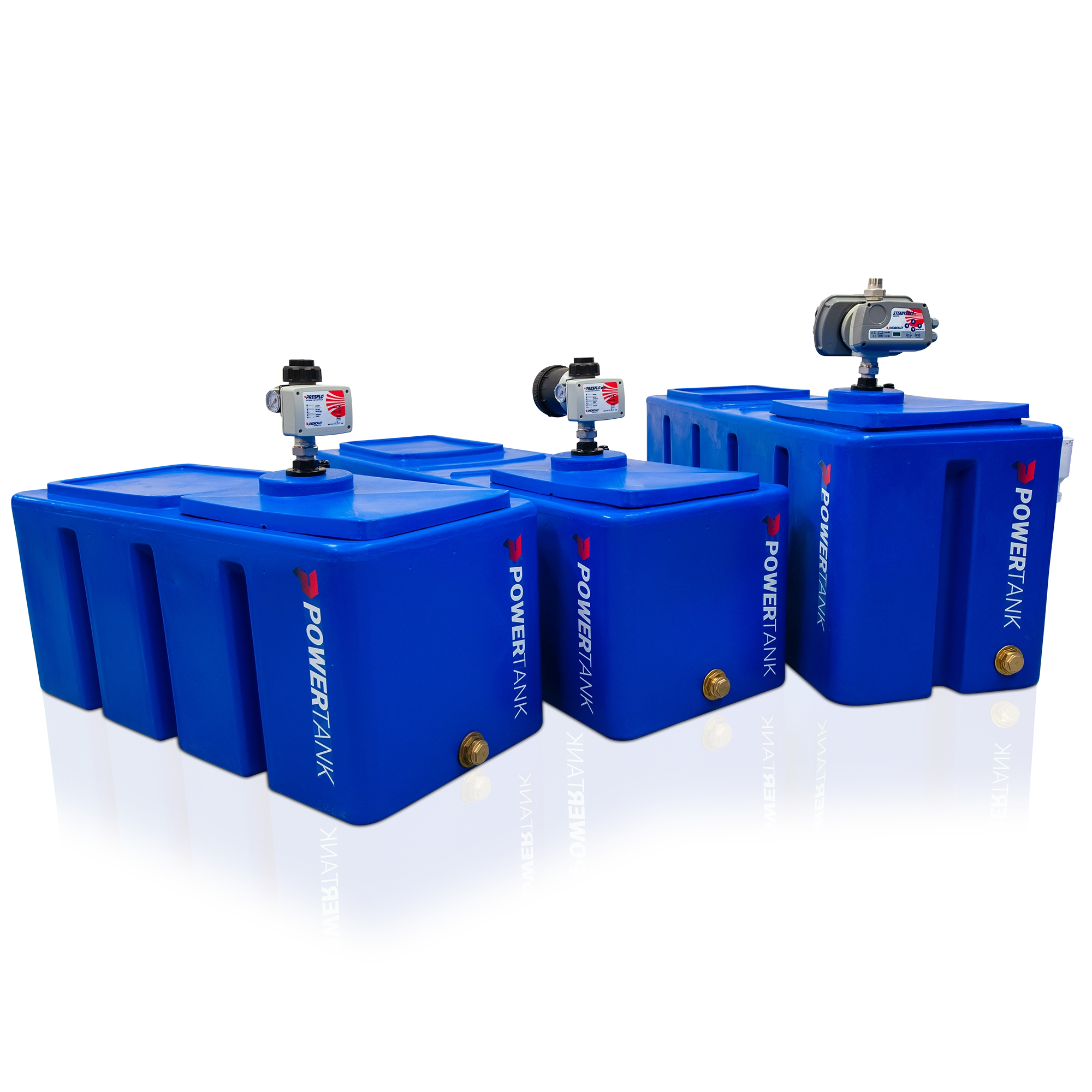

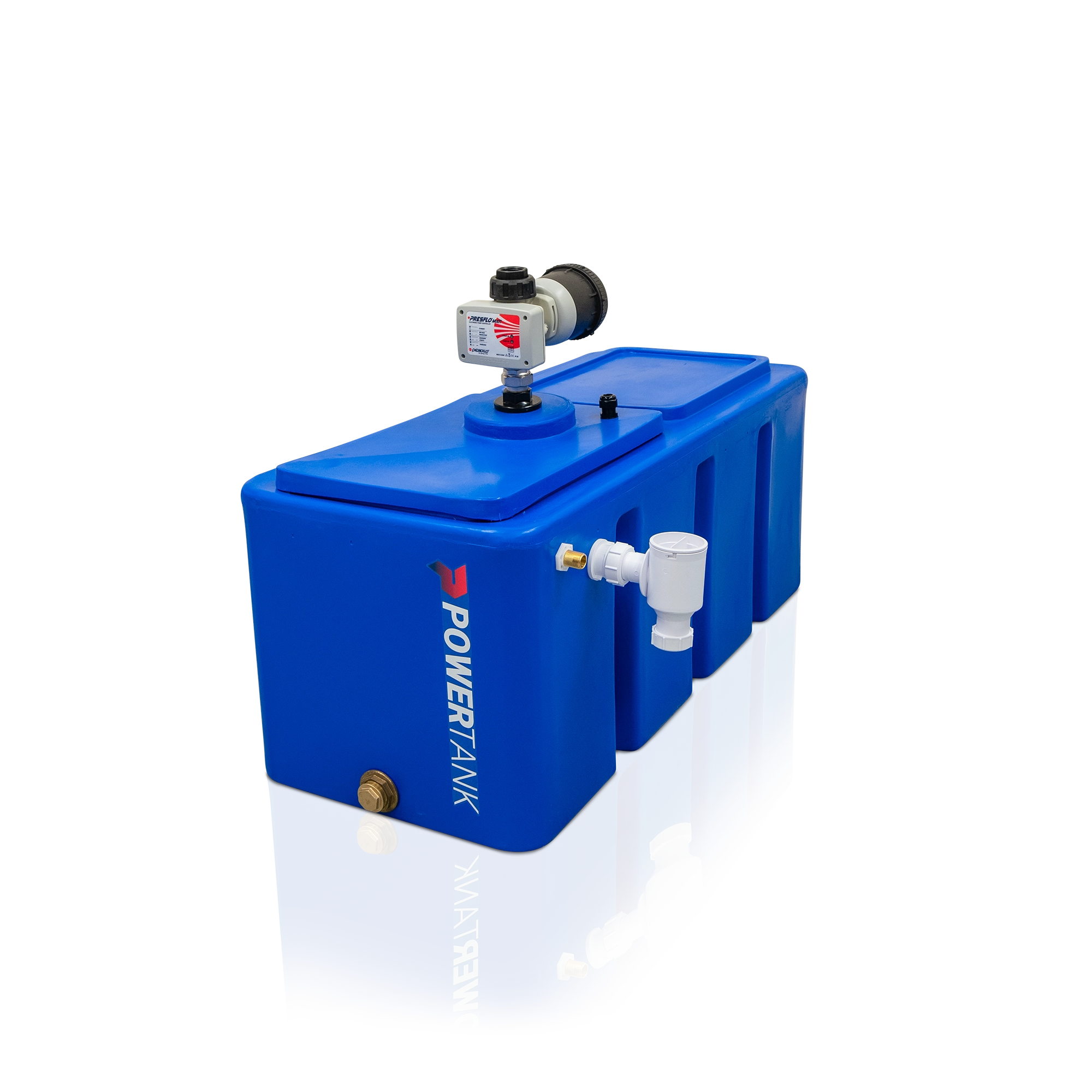

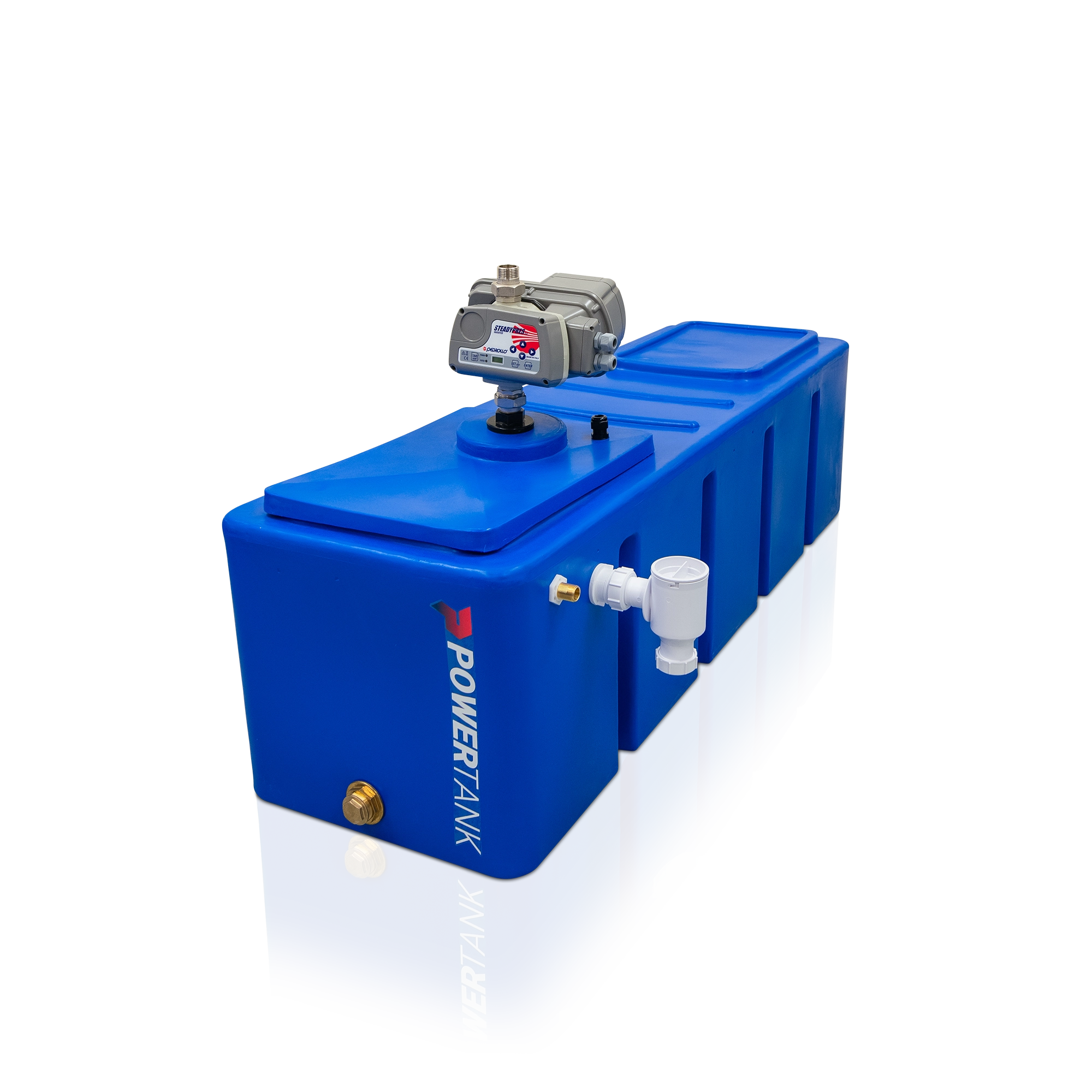

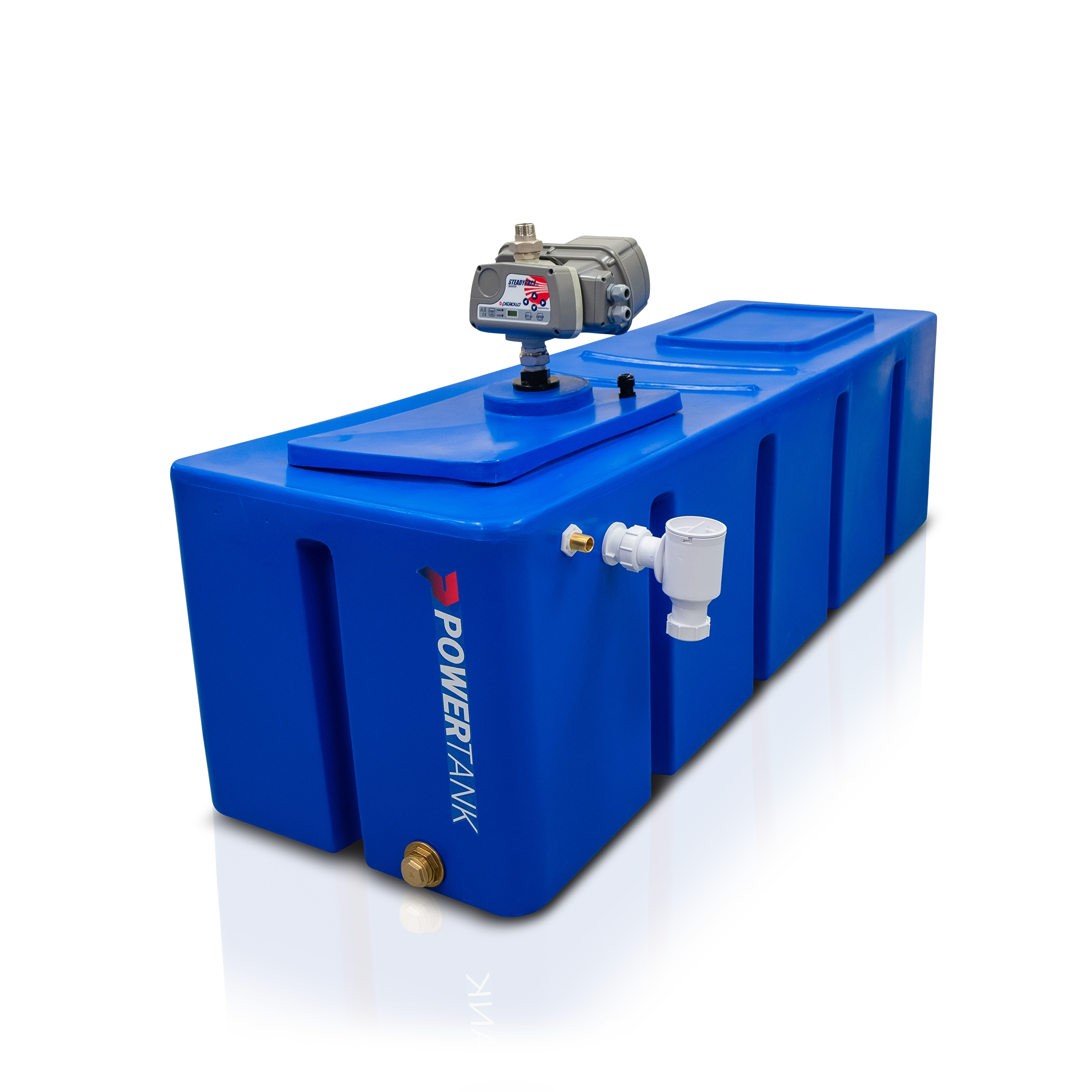

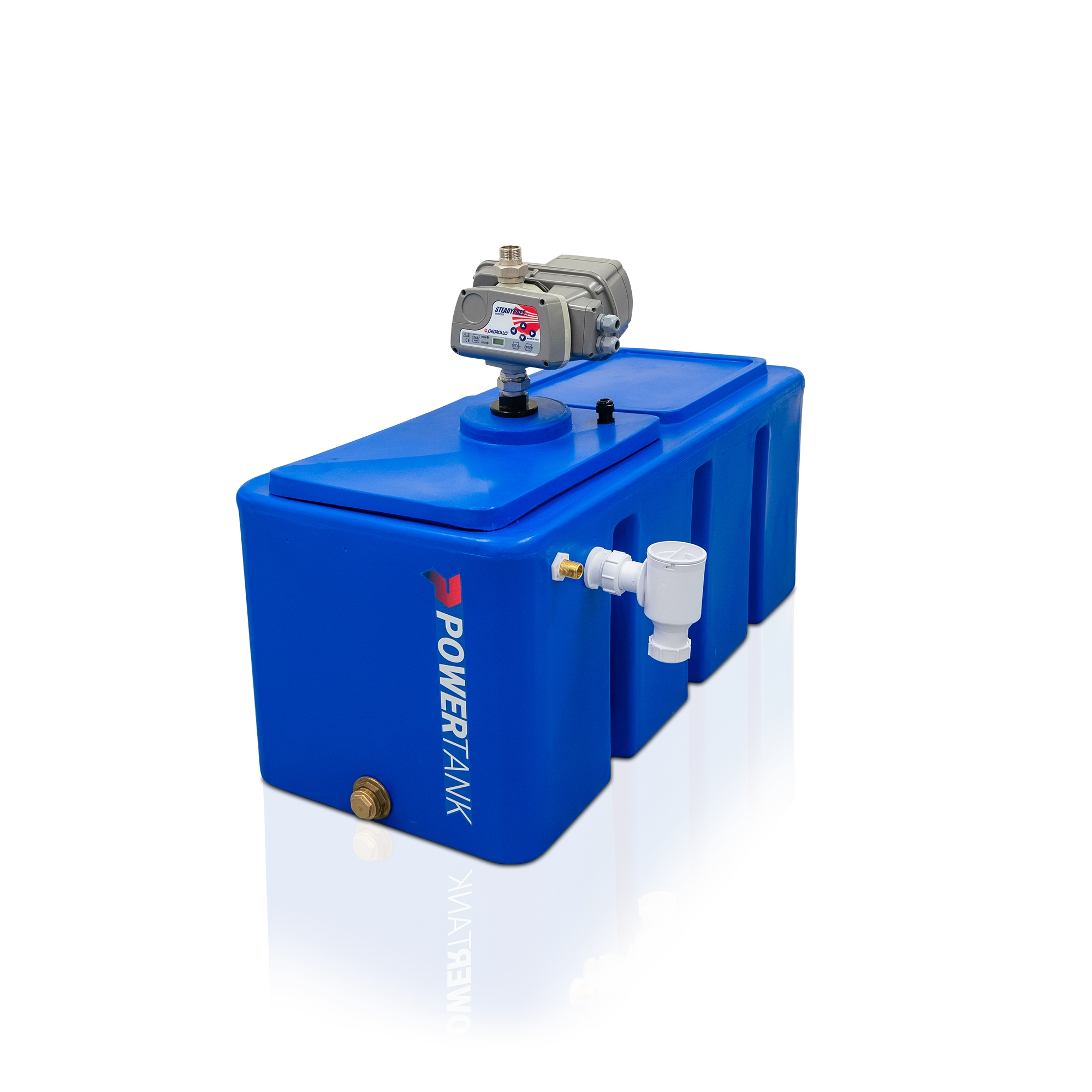

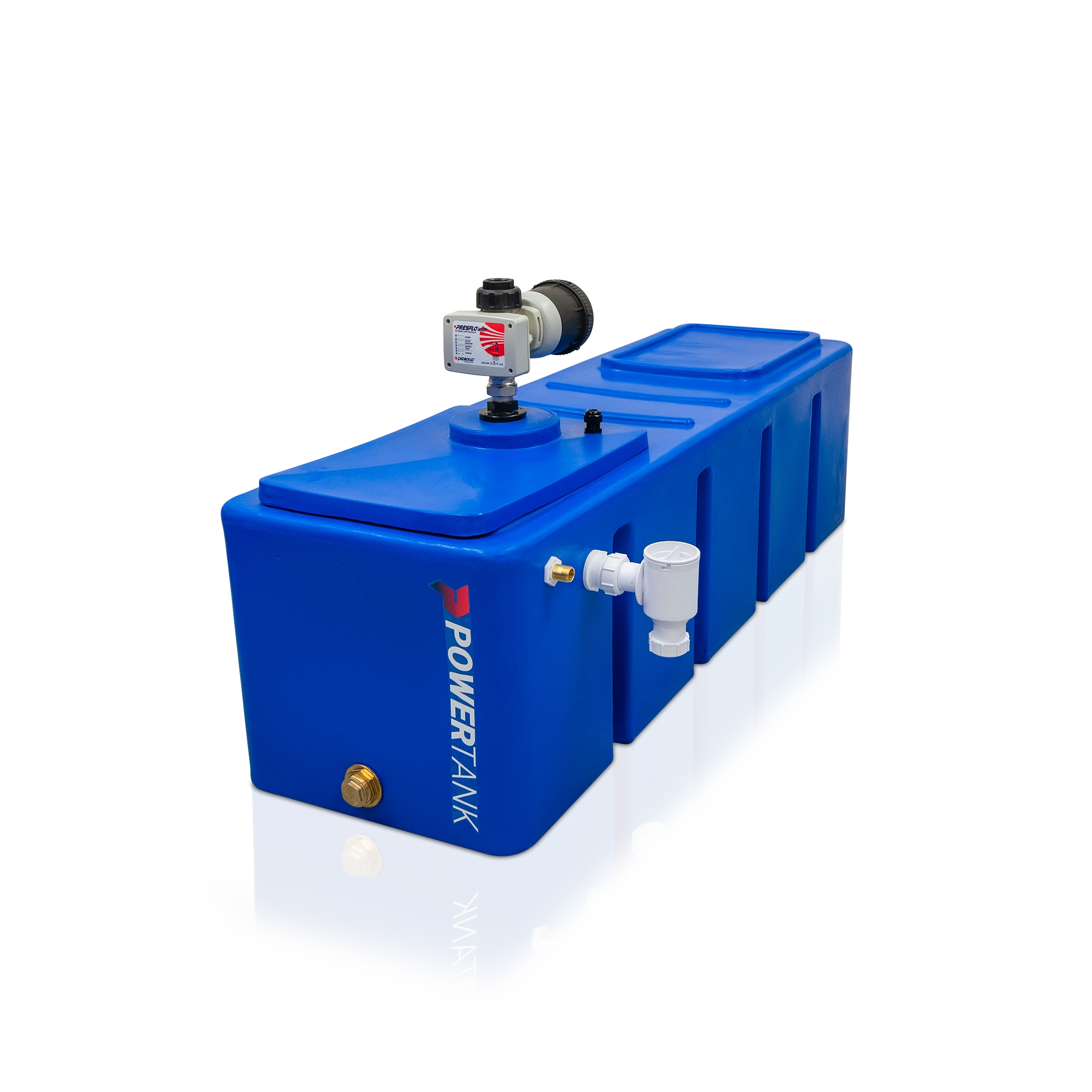

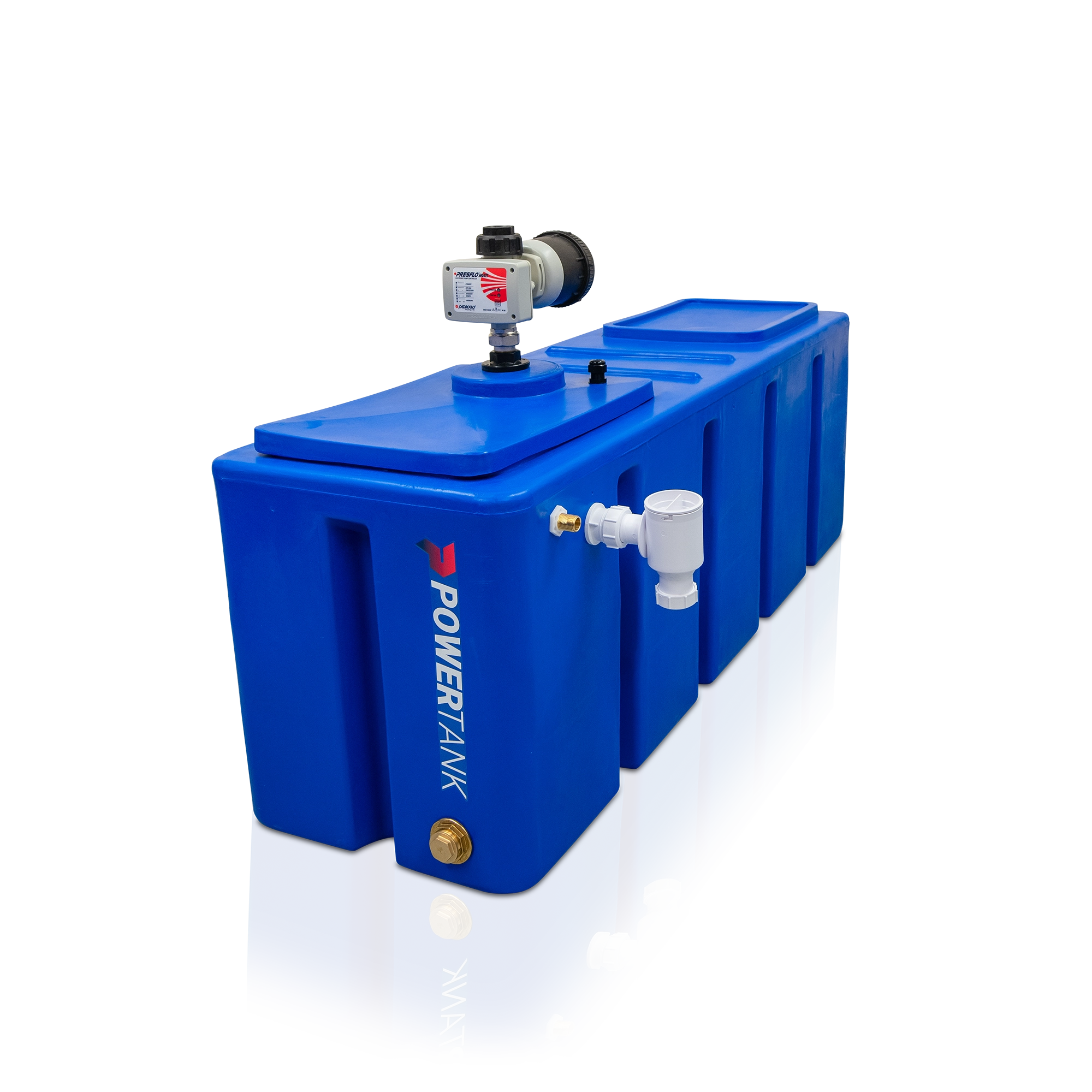

POWERTANK COFFIN
COFFIN 200, 270, 340 & 450LTR
The Powertank Coffin range is designed for domestic and light
commercial use where there is low mains water pressure and
where pressure fluctuates.
It is electronically controlled, starting and stopping the pump
automatically when an outlet is opened and closed. The
Powertank Coffin tanks are designed for areas where height
restrictions and access are an issue.
RANGE OPTIONS
- 200ltr Coffin Fixed Speed
- 200ltr Coffin Variable Speed
- 270ltr Coffin Fixed Speed
- 270ltr Coffin Variable Speed
- 340ltr Coffin Fixed Speed
- 340ltr Coffin Variable Speed
- 450ltr Coffin Fixed Speed
- 450ltr Coffin Variable Speed
OVERFLOW - INLET
VARIABLE SPEED OPTION
KEY FEATURES
- Non-corrosive holding tank (WRAS approved material)
- Pre-fitted WRAS approved fill valve
- Minimal installation required
- Adjustable digital display flow controller (Variable Speed Option)
- Dry run protection with auto restart (time delay)
- AF Air gap
- Suitable up to Fluid Category 4
TECHNICAL
- Power Supply: 250V 50Hz
- Mains Cable: 2mtr fitted with 13amp fuse mains plug
- Access Cover: 300mm x 450mm
- Tank Weight Full: 1ltr=1kg plus weight of empty tank
- Inlet: ½” BSP
- Outlet: 1” BSP
- Overflow: 1 ¼” (40mm) female waste - pipe compression fitting
- Drain Off: 1” BSP
DIMENSIONS
200ltr Coffin Fixed Speed L: 1106mm W:475mm H:770mm Weight: 30kg
200ltr Coffin Variable Speed L: 1106mm W:475mm H:770mm Weight: 37kg
270ltr Coffin Fixed Speed L: 1571mm W:475mm H:751mm Weight: 32kg
270ltr Coffin Variable Speed L: 1571mm W:475mm H:751mm Weight: 39kg
340ltr Coffin Fixed Speed L: 1571mm W:475mm H:980mm Weight: 34kg
340ltr Coffin Variable Speed L: 1571mm W:475mm H:980mm Weight: 40kg
450ltr Coffin Fixed Speed L: 1756mm W:580mm H:846mm Weight: 36kg
450ltr Coffin Variable Speed L: 1756mm W:580mm H:846mm Weight: 42kg
| Pump Option | kW | HP | A | Pressure | 1 Bar | 2 Bar | 3 Bar | 4 Bar | 5 Bar | 6 Bar |
|---|---|---|---|---|---|---|---|---|---|---|
| Fixed Speed | 0.55 | 0.75 | 3.4 | Q l/min | 73 | 57 | 40 | 10 | - | - |
| Variable Speed | 0.75 | 1 | 6.3 | Q l/min | 80 | 80 | 80 | 68 | 50 | 14 |
| Pump Option | Power | Performance |
|---|---|---|
| Fixed Speed | 0.55kW 0.75HP 3.4A | 57lpm @ 2 Bar | 40lpm @ 3 Bar | 10lpm @ 4 Bar |
| Variable Speed | 0.75kW 1HP 6.3A | 80pm @ 2 Bar | 80lpm @ 3 Bar | 80lpm @ 4 Bar |
Please note that we have a policy of continuous product development and specifications may change from those shown.
